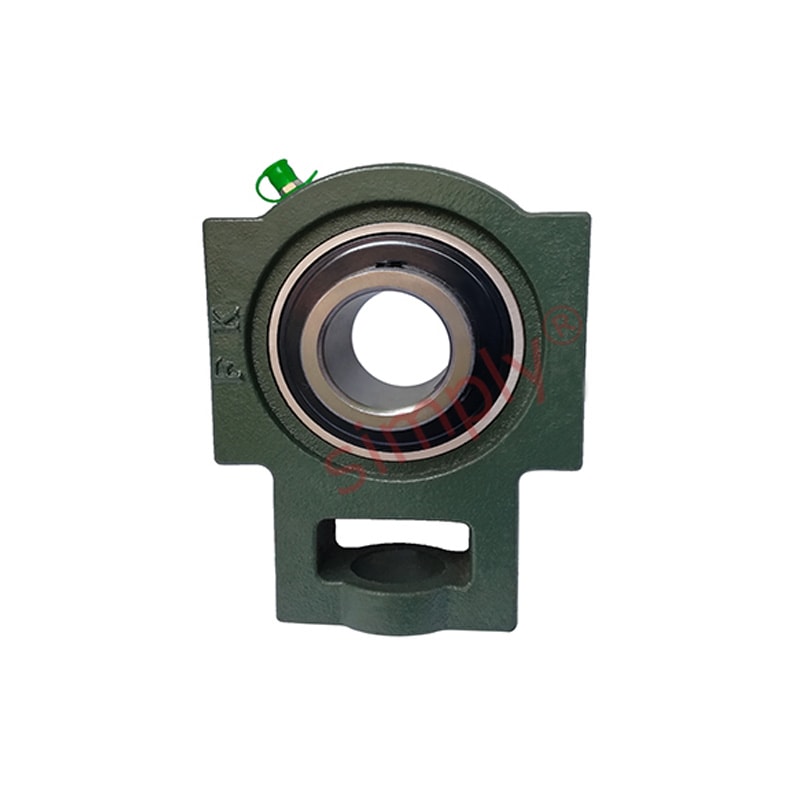

UCT322 Metric Cast Iron Take Up Unit Housing with 110mm Bore Insert
UCT322 Metric Cast Iron Take Up Unit Housing with 110mm Bore Insert
Regular price
$626.45
ex VAT
Regular price
Sale price
$626.45
ex VAT
In stock
Price Break
3+
$419.61
4+
$396.04
9+
$391.32
19+
$386.61
49+
$381.90
99+
$377.18
499+
$353.61
999+
$348.89
1999+
$344.18
2999+
$339.46
4999+
$330.03
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Style:
- UCT
Technical
Technical
| d | 110mm |
|---|---|
| o | 52mm |
| g | 38mm |
| p | 185mm |
| q | 125mm |
| s | 65mm |
| b | 215mm |
| k | 38mm |
| e | 285mm |
| a | 320mm |
| w | 385mm |
| j | 130mm |
| l | 80mm |
| h | 235mm |
| B | 117mm |
| n | 46mm |
| Bearing no | UC322 |
| Housing no | T322 |
| Weight | 39.4 kg |
