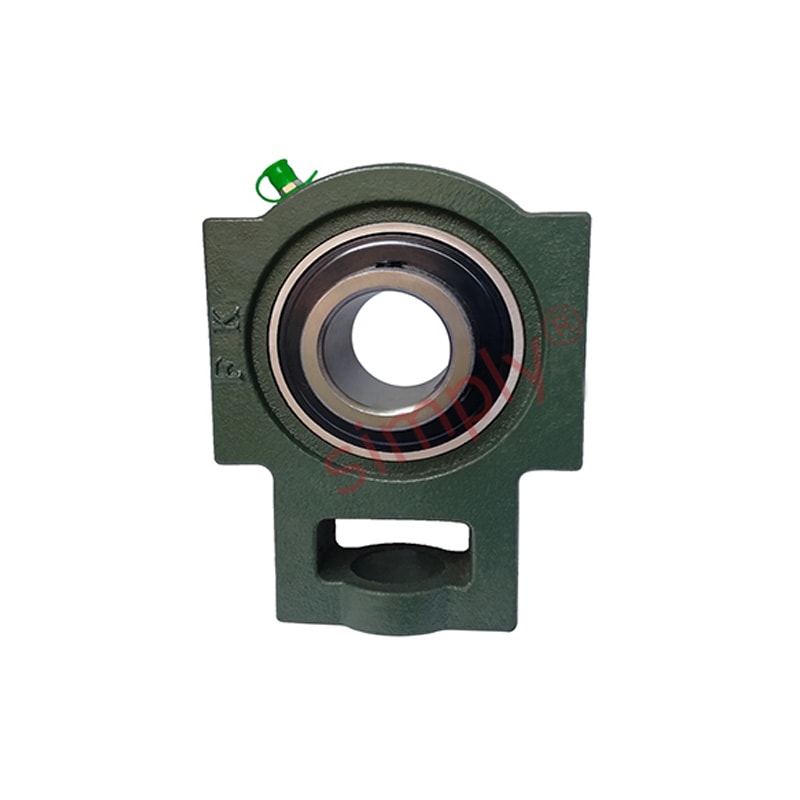

UCT324 Metric Cast Iron Take Up Unit Housing with 120mm Bore Insert
UCT324 Metric Cast Iron Take Up Unit Housing with 120mm Bore Insert
Regular price
$746.14
ex VAT
Regular price
Sale price
$746.14
ex VAT
In stock
Price Break
3+
$499.79
4+
$471.71
9+
$466.09
19+
$460.48
49+
$454.86
99+
$449.25
499+
$421.17
999+
$415.55
1999+
$409.94
2999+
$404.32
4999+
$393.09
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Style:
- UCT
Technical
Technical
| d | 120mm |
|---|---|
| o | 60mm |
| g | 42mm |
| p | 210mm |
| q | 140mm |
| s | 70mm |
| b | 230mm |
| k | 45mm |
| e | 320mm |
| a | 355mm |
| w | 432mm |
| j | 140mm |
| l | 90mm |
| h | 267mm |
| B | 126mm |
| n | 51mm |
| Bearing no | UC324 |
| Housing no | T324 |
| Weight | 54.2 kg |
