SKU: UCT328D1-NTN

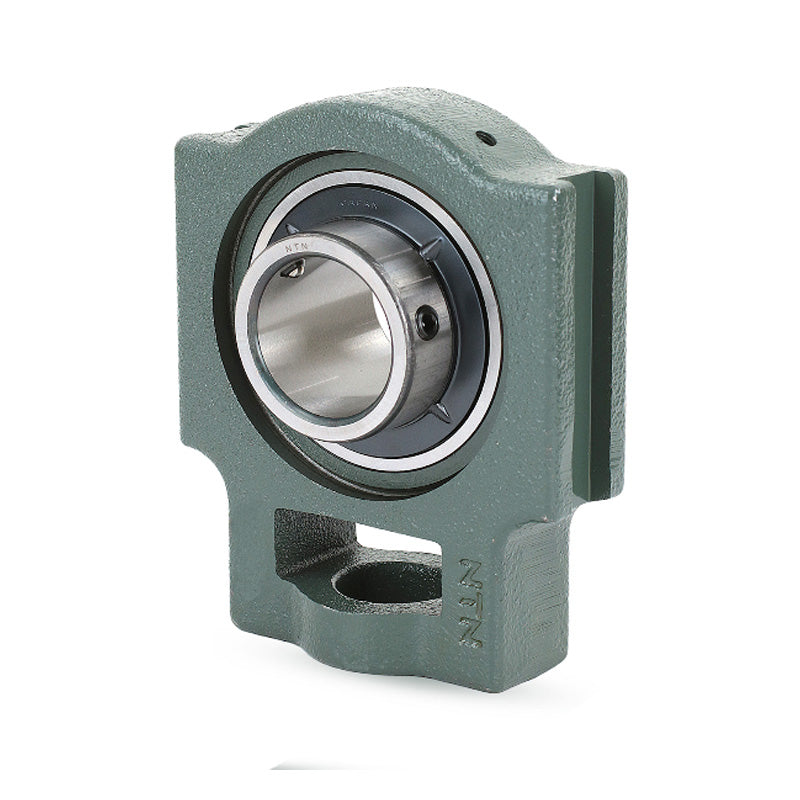

NTN UCT328D1 Metric Cast Iron Take Up Unit with 140mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT328D1 Metric Cast Iron Take Up Unit with 140mm Bore Bearing Unit - Allow 2-3 Days
Regular price
$2,274.03
ex VAT
Regular price
Sale price
$2,274.03
ex VAT
In stock
Price Break
3+
$1,625.66
4+
$1,540.10
9+
$1,454.54
19+
$1,368.98
49+
$1,334.75
99+
$1,300.53
499+
$1,129.41
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 140mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 140mm |
| N<sub>1</sub> | 70mm |
| L<sub>2</sub> | 52mm |
| H<sub>2</sub> | 230mm |
| N<sub>2</sub> | 160mm |
| N | 80mm |
| L<sub>3</sub> | 255mm |
| A<sub>1</sub> | 50mm |
| H<sub>1</sub> | 380mm |
| H | 415mm |
| L | 515mm |
| A<sub>2</sub> | 100mm |
| A | 155mm |
| r | 200mm |
| L<sub>1</sub> | 315mm |
| B | 145mm |
| S | 59mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 280 kN |
| Static load C<sub>0r</sub> | 246 kN |
| Fatigue load limit C<sub>u</sub> | 13 kN |
| --- | Unit information |
| Mass | 88 kg |
