SKU: UCTX09D1-NTN

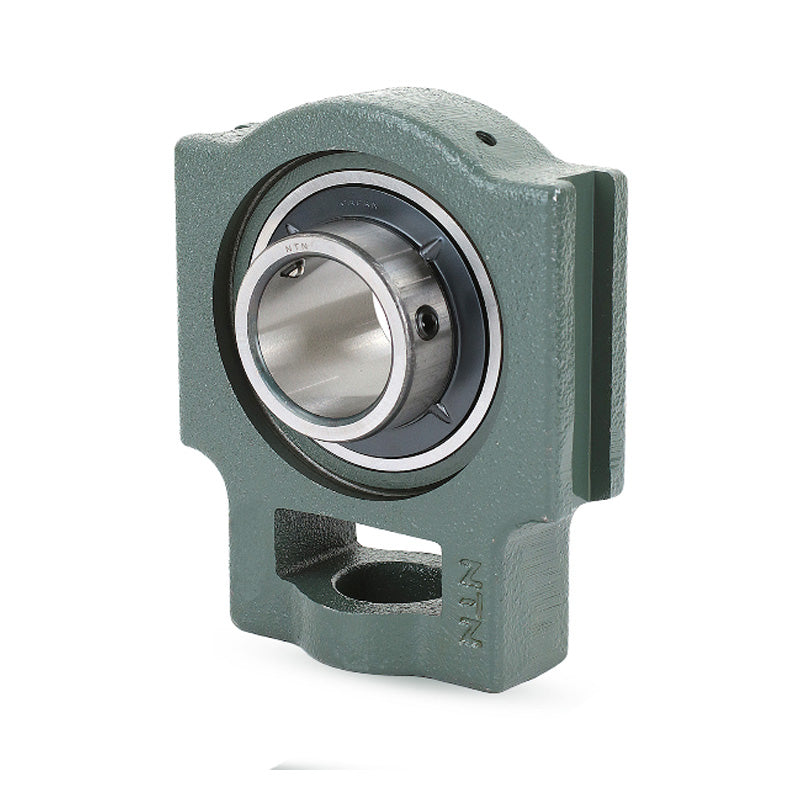

NTN UCTX09D1 Metric Cast Iron Take Up Unit with 45mm Bore Bearing Unit - Allow 2-3 Days

NTN UCTX09D1 Metric Cast Iron Take Up Unit with 45mm Bore Bearing Unit - Allow 2-3 Days
Regular price $103.06 ex VAT
Regular price Sale price $103.06 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.77
4+ $73.67
9+ $72.12
19+ $69.80
49+ $68.24
99+ $64.37
499+ $54.29
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 45mm
N<sub>1</sub> 19mm
L<sub>2</sub> 18mm
H<sub>2</sub> 83mm
N<sub>2</sub> 49mm
N 29mm
L<sub>3</sub> 86mm
A<sub>1</sub> 16mm
H<sub>1</sub> 102mm
H 117mm
L 151mm
A<sub>2</sub> 38mm
A 49mm
r 59mm
L<sub>1</sub> 92mm
B 51.6mm
S 19mm
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 27 kg
