SKU: UCTX15D1-NTN

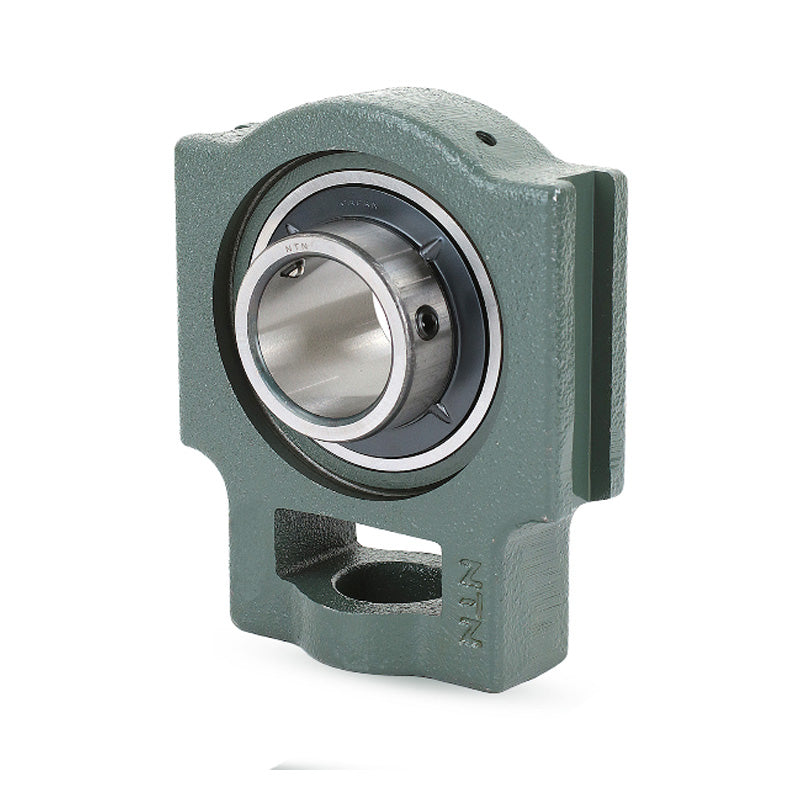

NTN UCTX15D1 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days
NTN UCTX15D1 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days
Regular price
$265.11
ex VAT
Regular price
Sale price
$265.11
ex VAT
In stock
Price Break
3+
$197.51
4+
$189.53
9+
$185.54
19+
$179.55
49+
$175.56
99+
$165.59
499+
$139.65
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCTX
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 23mm |
| H<sub>2</sub> | 111mm |
| N<sub>2</sub> | 70mm |
| N | 41mm |
| L<sub>3</sub> | 121mm |
| A<sub>1</sub> | 28mm |
| H<sub>1</sub> | 165mm |
| H | 184mm |
| L | 235mm |
| A<sub>2</sub> | 48mm |
| A | 70mm |
| r | 95mm |
| L<sub>1</sub> | 140mm |
| B | 82.6mm |
| S | 33.3mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 8.3 kg |
