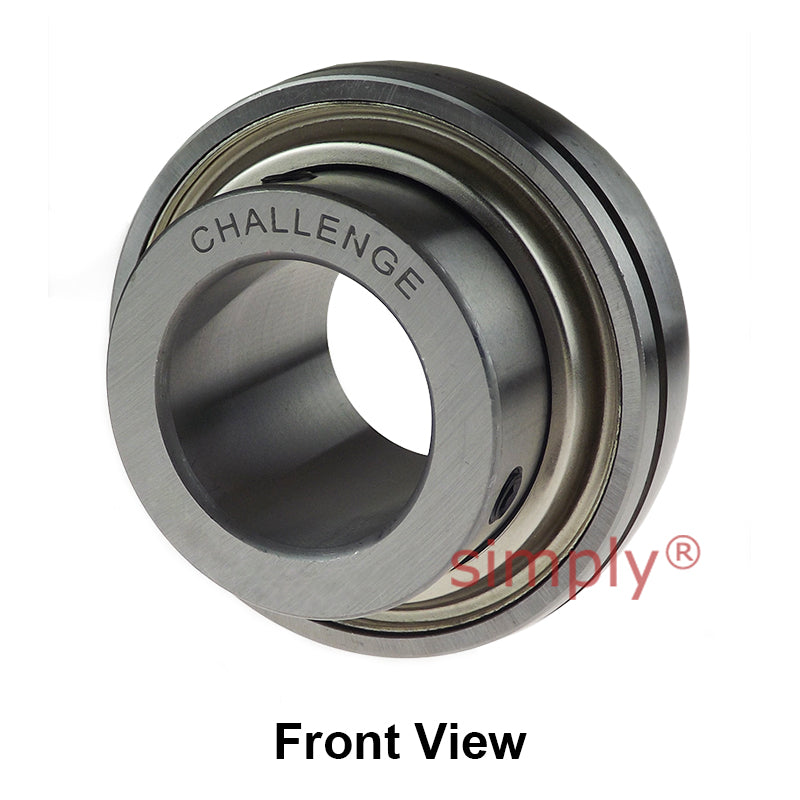

• Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UCX.05-16.TS.CHAL

Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$13.78 ex VAT
$13.78 ex VAT
Sale Sold out

Equivalent to: UCX.05-16

Low stock

Price Break
3+ $9.23
5+ $8.71
9+ $8.61
19+ $8.50
49+ $8.40
74+ $8.30
99+ $7.78
199+ $7.67
249+ $7.57
499+ $7.47
999+ $7.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
25.4mm = 1 inch
Style:
UCX
Technical
Shaft Diameter d 1 inch
Outside Diameter D 62mm
Overall Width Bi 38.1mm
Inner Race Width Be 19mm
Back of Bearing to Centre Line n 15.9mm
Front of Bearing to Centre Line m 22.2mm
Dimension G 5mm
Grub Screws x 2 1/4 - 28UNF inch
Load Rating (Dynamic) 1520kg
Load Rating (Static) 1020kg
Max Speed 3400 rev/min
Working Temperature -30°C to +120°C
