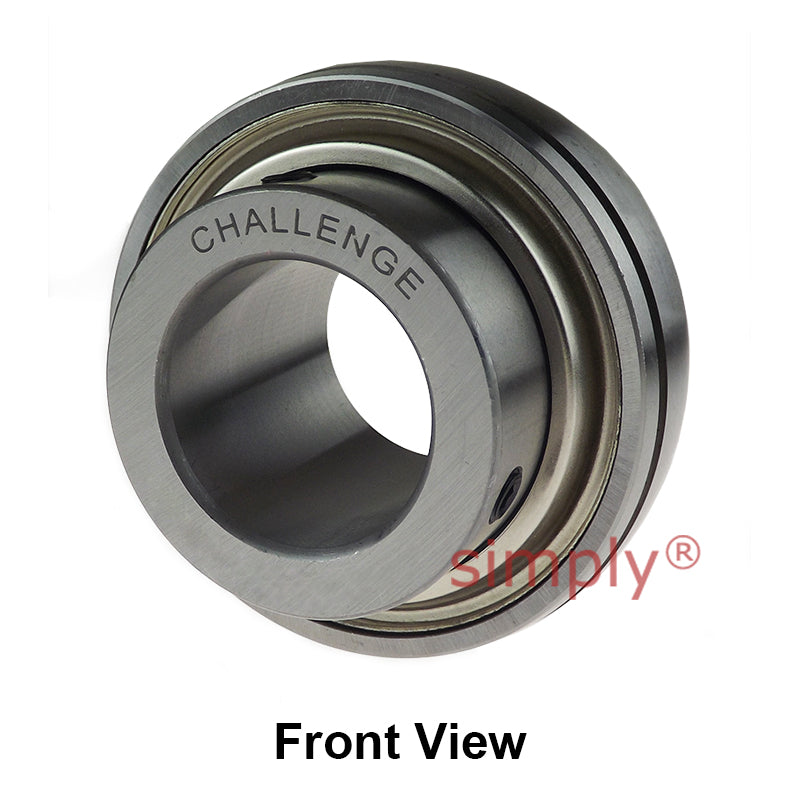

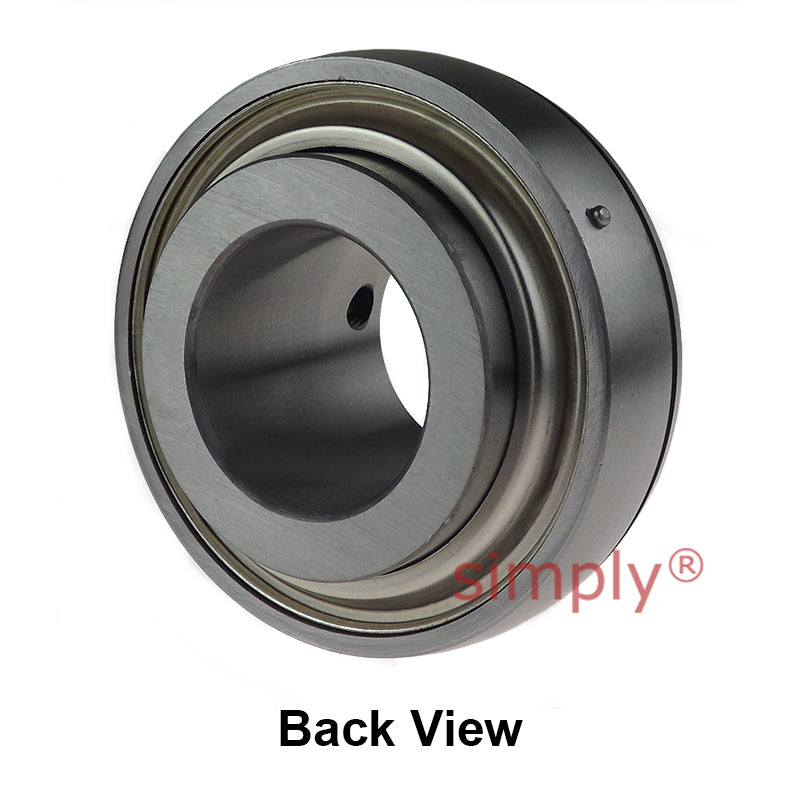

• Challenge UCX06-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UCX06-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UCX.06-20.TS.CHAL

Challenge UCX06-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UCX06-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$49.61 ex VAT
$49.61 ex VAT
Sale Sold out

Equivalent to: UCX.06-20

In stock

Price Break
3+ $33.24
5+ $31.37
9+ $31.00
19+ $30.62
49+ $30.25
74+ $29.87
99+ $28.01
199+ $27.63
249+ $27.26
499+ $26.89
999+ $26.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
UCX
Technical
Shaft Diameter d 1-1/4 inch
Outside Diameter D 72mm
Overall Width Bi 42.9mm
Inner Race Width Be 20mm
Back of Bearing to Centre Line n 17.5mm
Front of Bearing to Centre Line m 25.4mm
Dimension G 6.5mm
Grub Screws x 2 1/4 - 28UNF inch
Load Rating (Dynamic) 2010kg
Load Rating (Static) 1390kg
Max Speed 2800 rev/min
Working Temperature -30°C to +120°C
