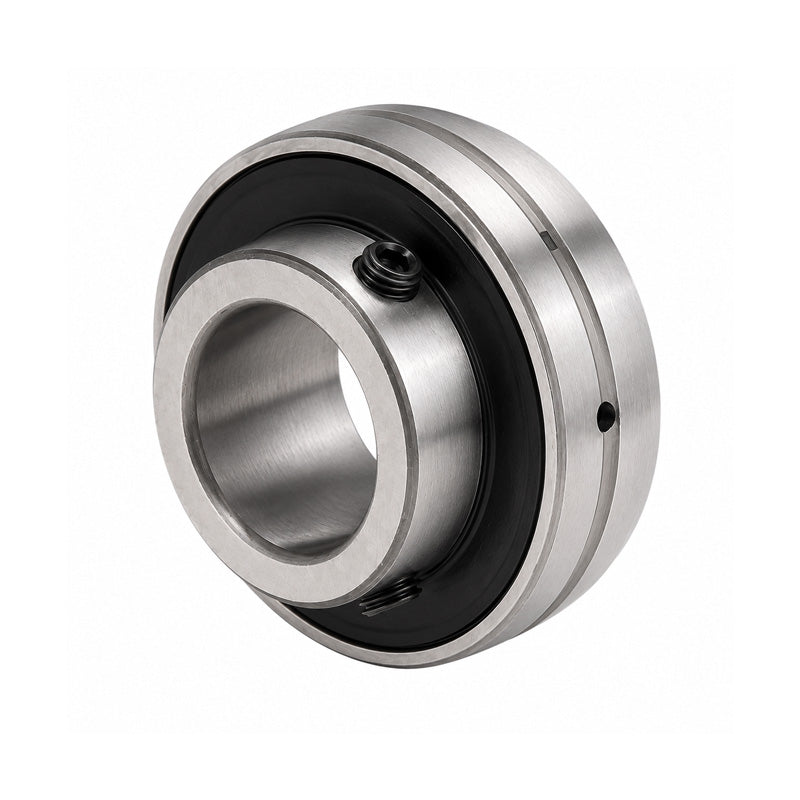

• UCX08 Metric Bearing Insert with 40mm Bore 85mm Outside Dia
1 1

SKU: UCX.08

UCX08 Metric Bearing Insert with 40mm Bore 85mm Outside Dia

UCX08 Metric Bearing Insert with 40mm Bore 85mm Outside Dia
$25.52 ex VAT
$25.52 ex VAT
Sale Sold out

Equivalent to: 1045-40G

In stock

Price Break
3+ $17.09
4+ $16.13
9+ $15.94
19+ $15.75
49+ $15.56
99+ $15.37
499+ $14.41
999+ $14.21
1999+ $14.02
2999+ $13.83
4999+ $13.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
85mm
Style:
UCX
Technical
d 40mm
D 85mm
Bi 49.2mm
Be 22mm
n 19mm
m 30.2mm
G 8mm
Grub screw M8x1
Weight 0.87 kg
Dynamic load 2650 kgf
Static load 1910 kgf
Rec max speed 3700 rpm
