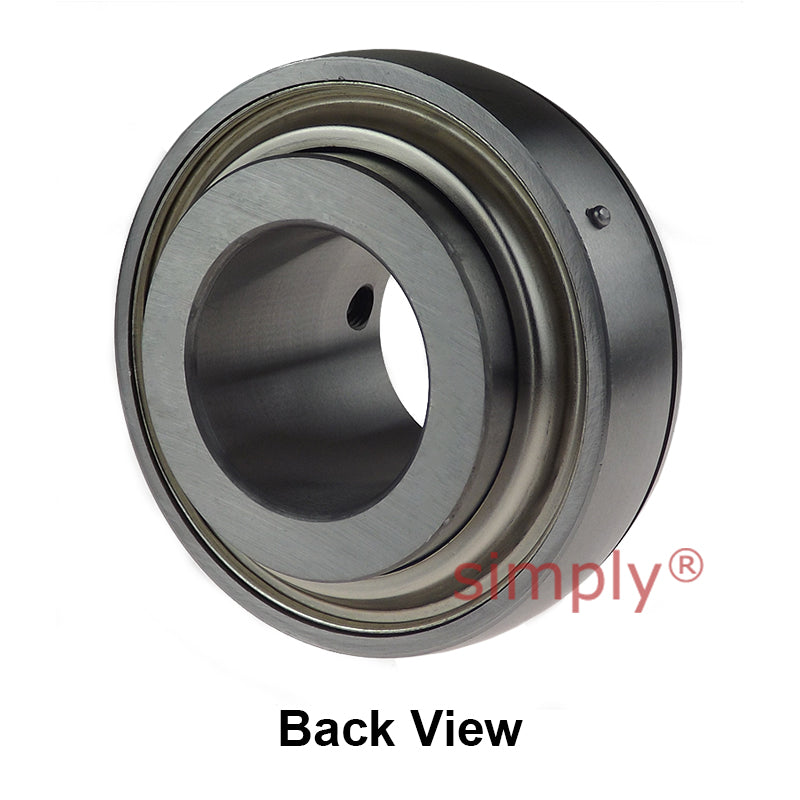

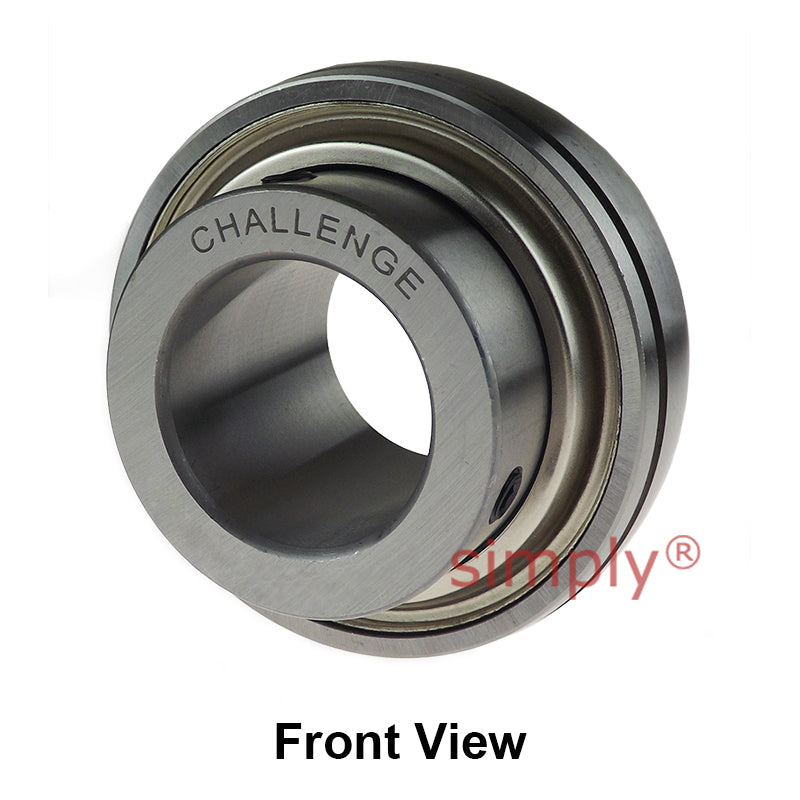

• Challenge UCX08-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UCX08-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UCX.08-24.TS.CHAL

Challenge UCX08-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UCX08-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$57.16 ex VAT
$57.16 ex VAT
Sale Sold out

Equivalent to: UCX.08-24

In stock

Price Break
3+ $38.29
5+ $36.13
9+ $35.70
19+ $35.27
49+ $34.84
74+ $34.41
99+ $32.26
199+ $31.83
249+ $31.40
499+ $30.97
999+ $30.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCX
Technical
Shaft Diameter d 1-1/2 inch
Outside Diameter D 85mm
Overall Width Bi 49.2mm
Inner Race Width Be 22mm
Back of Bearing to Centre Line n 19mm
Front of Bearing to Centre Line m 30.2mm
Dimension G 8mm
Grub Screws x 2 5/16 - 24UNF inch
Load Rating (Dynamic) 2650kg
Load Rating (Static) 1910kg
Max Speed 2200 rev/min
Working Temperature -30°C to +120°C
