SKU: UCX.09-27

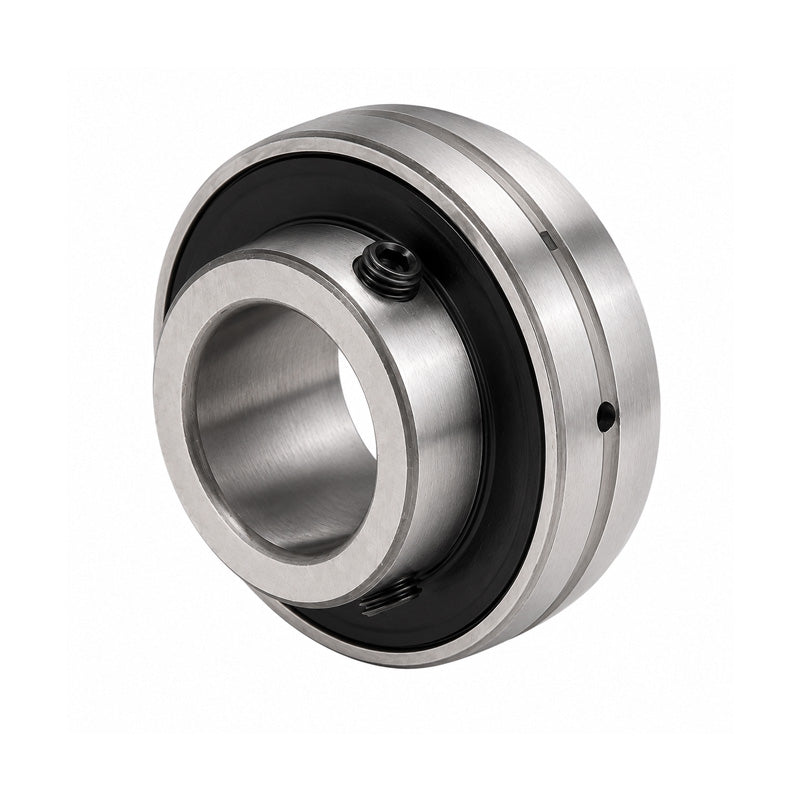

UCX09-27 Imperial Bearing Insert with 1-11/16 inch Bore 90mm Outside Dia

Name: UCX09-27 Imperial Bearing Insert with 1-11/16 inch Bore 90mm Outside Dia
Brand: Gen
SKU: UCX.09-27
Price: 30.29 USD
Availability: InStock

$30.29 ex VAT

Sale Sold out

Equivalent to: 1050-1-11/16G

In stock

Price Break

3+ $20.29

4+ $19.15

9+ $18.92

19+ $18.69

49+ $18.47

99+ $18.24

499+ $17.10

999+ $16.87

1999+ $16.64

2999+ $16.41

4999+ $15.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 42.86mm = 1.687 (1-11/16) inch
Outside Diameter:: 90mm
Style:: UCX

Technical

d	1-11/16 inch
D	90mm
Bi	51.6mm
Be	24mm
n	19mm
m	32.6mm
G	10mm
Grub screw	3/8-24-unf
Weight	0.97 kg
Dynamic load	2750 kgf
Static load	2020 kgf
Rec max speed	3400 rpm
