• UCX10 Metric Bearing Insert with 50mm Bore 100mm Outside Dia
1 1

SKU: UCX.10

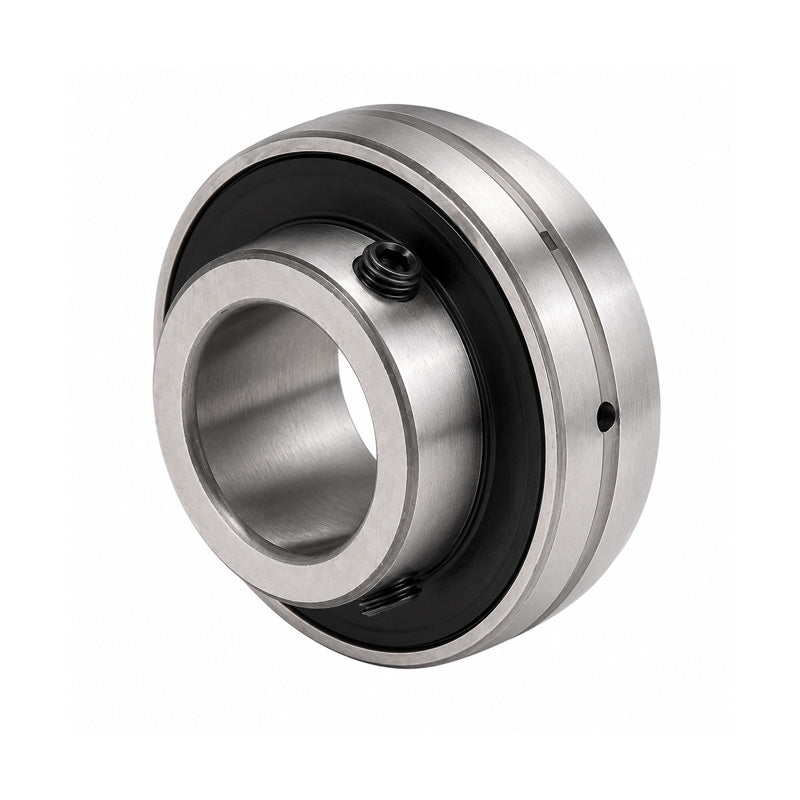

UCX10 Metric Bearing Insert with 50mm Bore 100mm Outside Dia

UCX10 Metric Bearing Insert with 50mm Bore 100mm Outside Dia
$46.28 ex VAT
$46.28 ex VAT
Sale Sold out

Equivalent to: 1055-50G

In stock

Price Break
3+ $31.00
4+ $29.26
9+ $28.91
19+ $28.56
49+ $28.21
99+ $27.87
499+ $26.12
999+ $25.78
1999+ $25.43
2999+ $25.08
4999+ $24.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
100mm
Style:
UCX
Technical
d 50mm
D 100mm
Bi 55.6mm
Be 25mm
n 22.2mm
m 33.4mm
G 10mm
Grub screw M10x1
Weight 1.26 kg
Dynamic load 3400 kgf
Static load 2550 kgf
Rec max speed 3100 rpm
