SKU: UCX.10-32.TS.CHAL

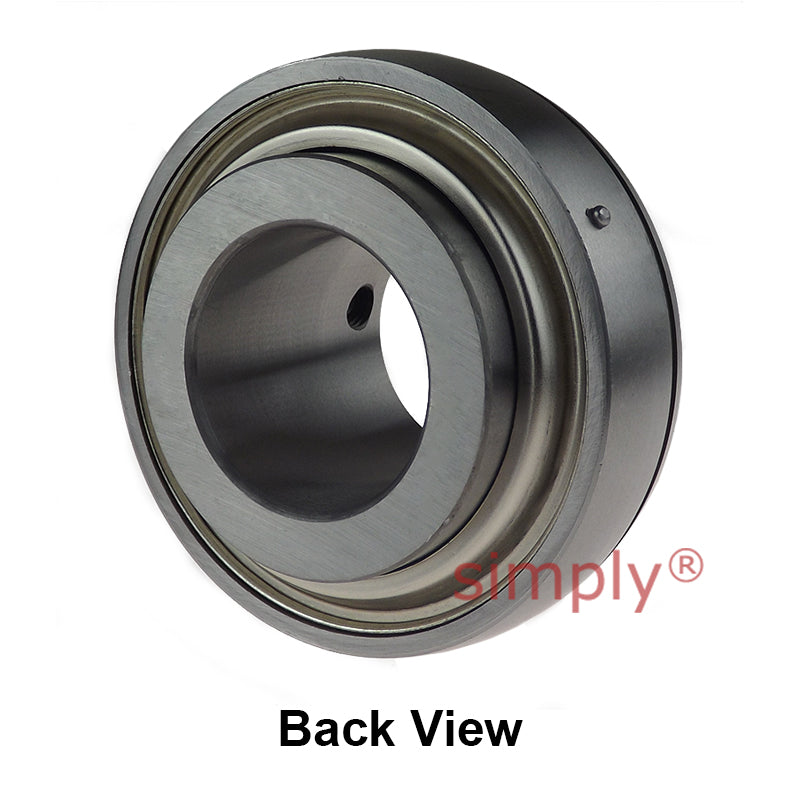

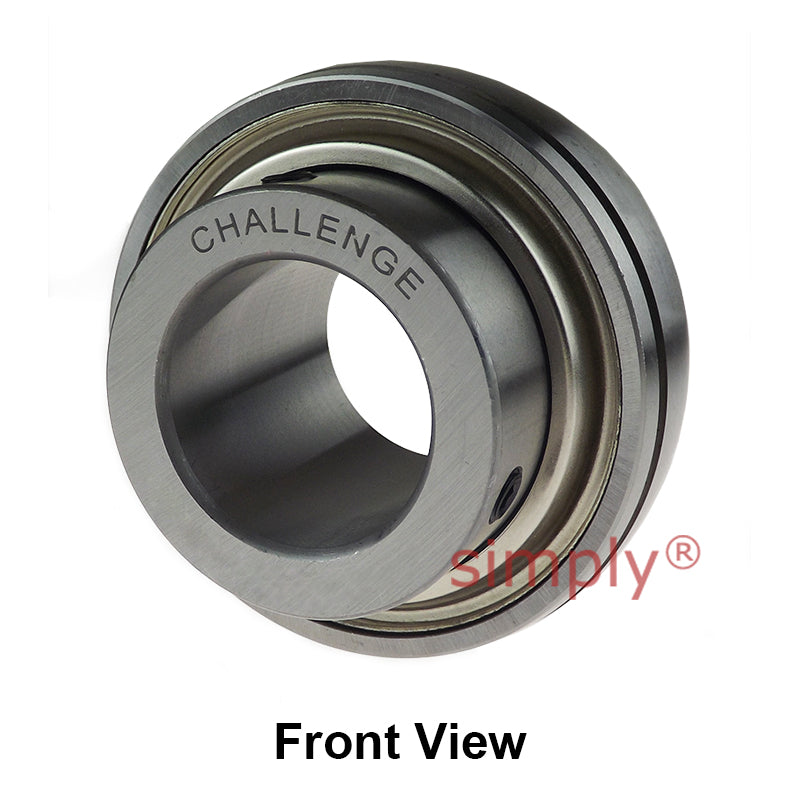

Challenge UCX10-32 Imperial Insert with Grub Screws with 2 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UCX10-32 Imperial Insert with Grub Screws with 2 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$83.73 ex VAT
$83.73 ex VAT
Sale Sold out

Equivalent to: UCX.10-32

In stock

Price Break
3+ $56.09
5+ $52.94
9+ $52.30
19+ $51.67
49+ $51.04
74+ $50.41
99+ $47.26
199+ $46.63
249+ $46.00
499+ $45.37
999+ $44.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
50.8mm = 2 inch
Style:
UCX
Technical
Shaft Diameter d 2 inch
Outside Diameter D 100mm
Overall Width Bi 55.6mm
Inner Race Width Be 25mm
Back of Bearing to Centre Line n 22.2mm
Front of Bearing to Centre Line m 33.4mm
Dimension G 10mm
Grub Screws x 2 3/8 - 24UNF inch
Load Rating (Dynamic) 3400kg
Load Rating (Static) 2550kg
Max Speed 1800 rev/min
Working Temperature -30°C to +120°C
