SKU: UCX.16-50

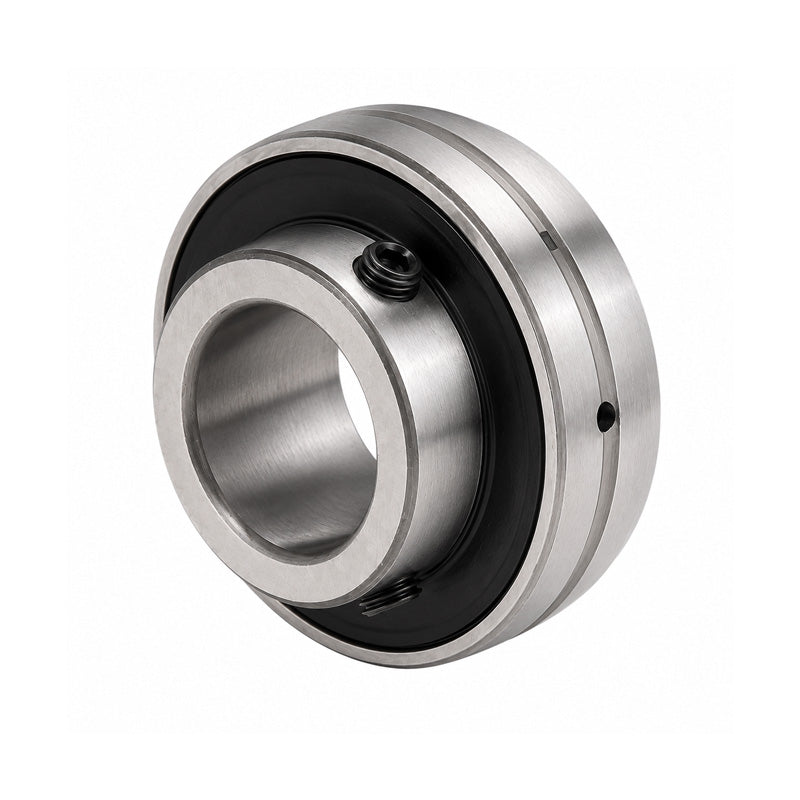

UCX16-50 Imperial Bearing Insert with 3-1/8 inch Bore 150mm Outside Dia
UCX16-50 Imperial Bearing Insert with 3-1/8 inch Bore 150mm Outside Dia
Out of stock
Description
Description
|
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 79.38mm = 3.125 (3-1/8) inch
- Outside Diameter:
- 150mm
- Style:
- UCX
Technical
Technical
| d | 3-1/8 inch |
|---|---|
| D | 150mm |
| Bi | 85.7mm |
| Be | 34mm |
| n | 34.1mm |
| m | 51.6mm |
| G | 14mm |
| Grub screw | 7/16-20-unf |
| Weight | 3.87 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
