SKU: UELF210D1W3-NTN

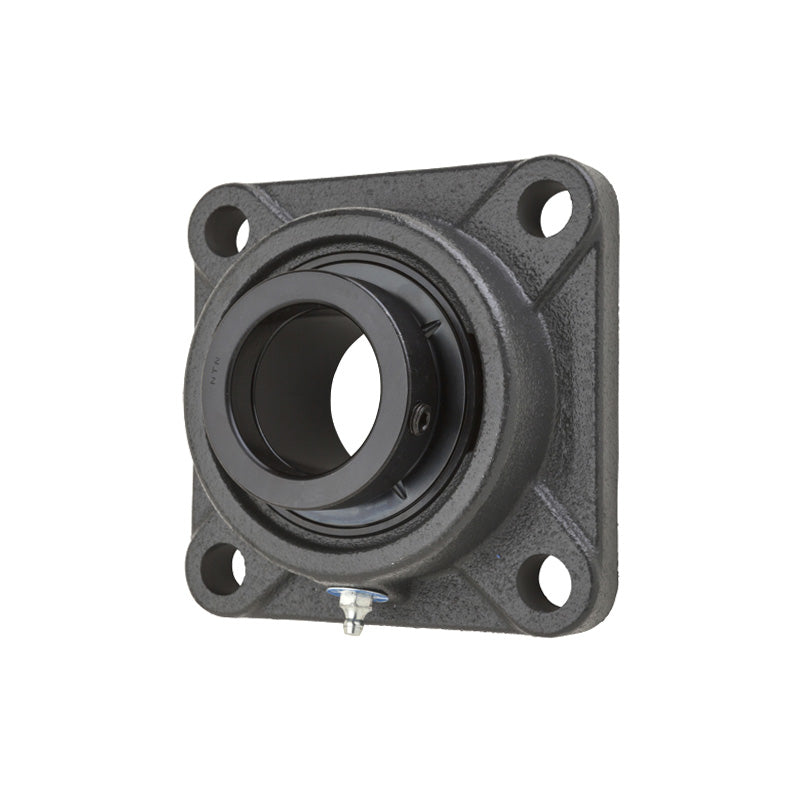

NTN UELF210D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELF210D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$76.51
ex VAT
Regular price
Sale price
$76.51
ex VAT
In stock
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELF
- Bolt Hole Centres:
- 111mm

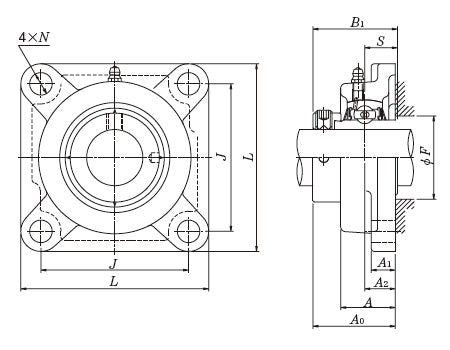

Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| L | 143mm |
| J | 111mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 40mm |
| N | 16mm |
| A<sub>0</sub> | 60.1mm |
| B<sub>1</sub> | 62.7mm |
| S | 24.6mm |
| F min. | 67mm |
| Fixing bolt | M14 |
| Mass | 2.7 kg |
