SKU: UELFC210-115D1W3-NTN

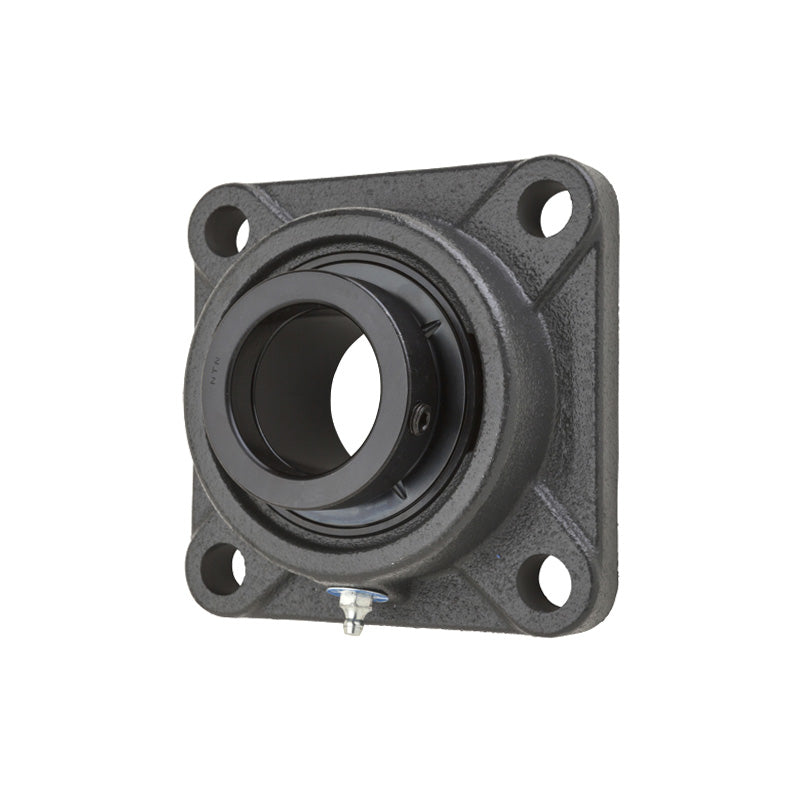

NTN UELFC210-115D1W3 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-15/16 inch Eccentric Collar Insert - Allow 2-3 Days
NTN UELFC210-115D1W3 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-15/16 inch Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELFC200 Series 4 Bolt Cast Iron Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- UELFC
- Pitch Circle Diameter:
- 3-27/32 inch
Technical
Technical
| Shaft diameter | 1-15/16 inch |
|---|---|
| L | 6-1/2 inch |
| J | 5-7/16 inch |
| (J<sub>1</sub> | 3-27/32 inch |
| A<sub>2</sub> | 25/64 inch |
| N | 5/8 inch |
| A<sub>3</sub> | 15/32 inch |
| A<sub>1</sub> | 1-3/32 inch |
| A | 1-37/64 inch |
| H<sub>3</sub> | 4.3307 inch |
| A<sub>0</sub> | 2-23/64 inch |
| B<sub>1</sub> | 2.469 inch |
| S | 0.969 inch |
| F min. | 2-23/32 inch |
| Fixing bolt | 1/2 inch |
| Mass | 6.8 lbs |
