SKU: UELFL209D1W3-NTN
NTN UELFL209D1W3 Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELFL209D1W3 Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$65.96
ex VAT
Regular price
Sale price
$65.96
ex VAT
In stock
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UELFL
- Bolt Hole Centres:
- 148mm
Technical
Technical

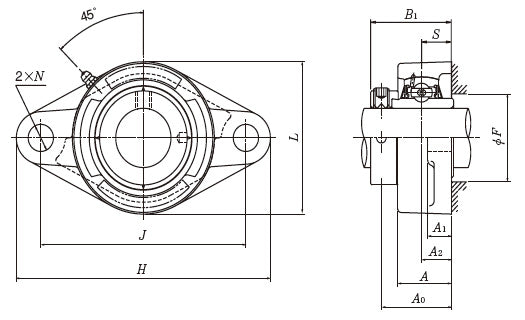

| Shaft diameter | 45mm |
|---|---|
| H | 188mm |
| J | 148mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 38mm |
| N | 19mm |
| L | 108mm |
| A<sub>0</sub> | 56.9mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| F min. | 62mm |
| Fixing bolt | M16 |
| Mass | 2 kg |
