SKU: UELP207-107D1W3-NTN

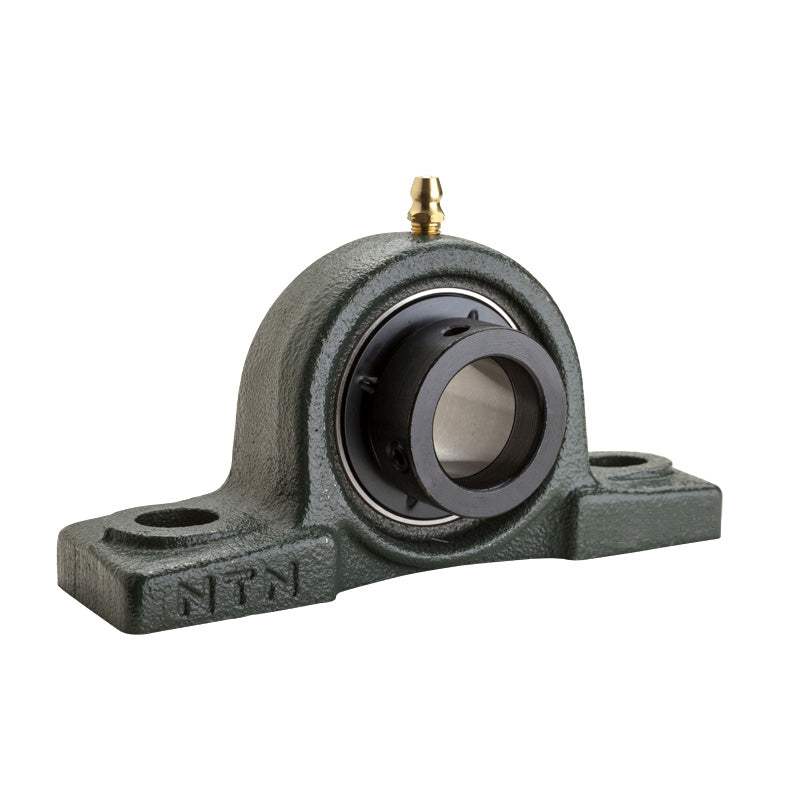

NTN UELP207-107D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Eccentric Collar Insert - Allow 2-3 Days
NTN UELP207-107D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
$73.65
ex VAT
Regular price
Sale price
$73.65
ex VAT
In stock
Price Break
3+
$54.87
4+
$52.65
9+
$51.54
19+
$49.88
49+
$48.77
99+
$46.00
499+
$38.79
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 36.49mm = 1.436 (1-7/16) inch
- Style:
- UELP
- Bolt Hole Centres:
- 5 inch
Technical
Technical
| Shaft diameter | 1-7/16 inch |
|---|---|
| H | 1-7/8 inch |
| L | 6-9/16 inch |
| J | 5 inch |
| A | 1-7/8 inch |
| N | 21/32 inch |
| N<sub>1</sub> | 25/32 inch |
| H<sub>1</sub> | 23/32 inch |
| H<sub>2</sub> | 3-21/32 inch |
| L<sub>1</sub> | 2-1/8 inch |
| B<sub>1</sub> | 2.012 inch |
| S | 0.74 inch |
| Fixing bolt | 1/2 inch |
| Mass | 4 lbs |
