SKU: UELP308D1W3-NTN

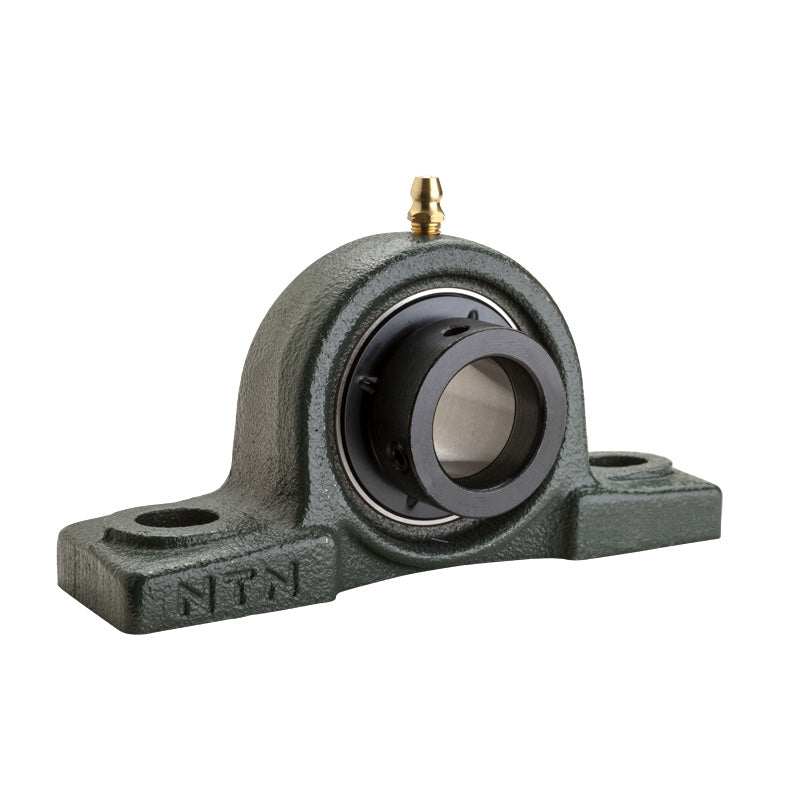

NTN UELP308D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP308D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UELP
- Bolt Hole Centres:
- 170mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 60mm |
| L | 220mm |
| J | 170mm |
| A | 60mm |
| N | 17mm |
| N<sub>1</sub> | 27mm |
| H<sub>1</sub> | 22mm |
| H<sub>2</sub> | 116mm |
| L<sub>1</sub> | 60mm |
| B<sub>1</sub> | 57.1mm |
| S | 19.8mm |
| Fixing bolt | M14 |
| Mass | 3.2 kg |
