SKU: UELP310D1W3-NTN

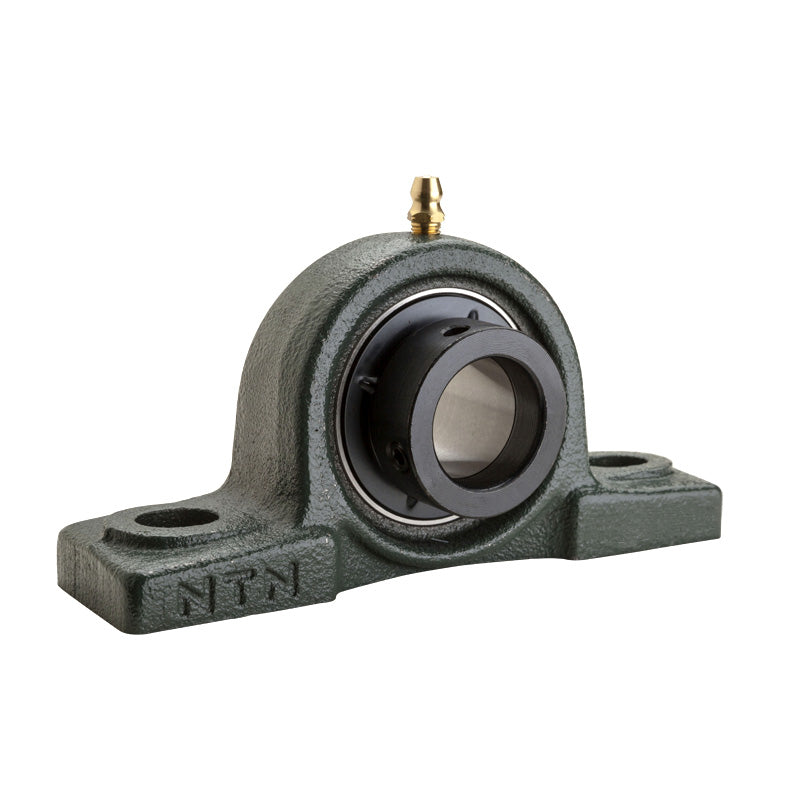

NTN UELP310D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP310D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$176.65
ex VAT
Regular price
Sale price
$176.65
ex VAT
In stock
Price Break
3+
$131.60
4+
$126.28
9+
$123.62
19+
$119.64
49+
$116.98
99+
$110.33
499+
$93.05
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELP
- Bolt Hole Centres:
- 212mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 75mm |
| L | 275mm |
| J | 212mm |
| A | 75mm |
| N | 20mm |
| N<sub>1</sub> | 35mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 143mm |
| L<sub>1</sub> | 75mm |
| B<sub>1</sub> | 66.6mm |
| S | 24.6mm |
| Fixing bolt | M16 |
| Mass | 5.8 kg |
