SKU: UELP313D1W3-NTN

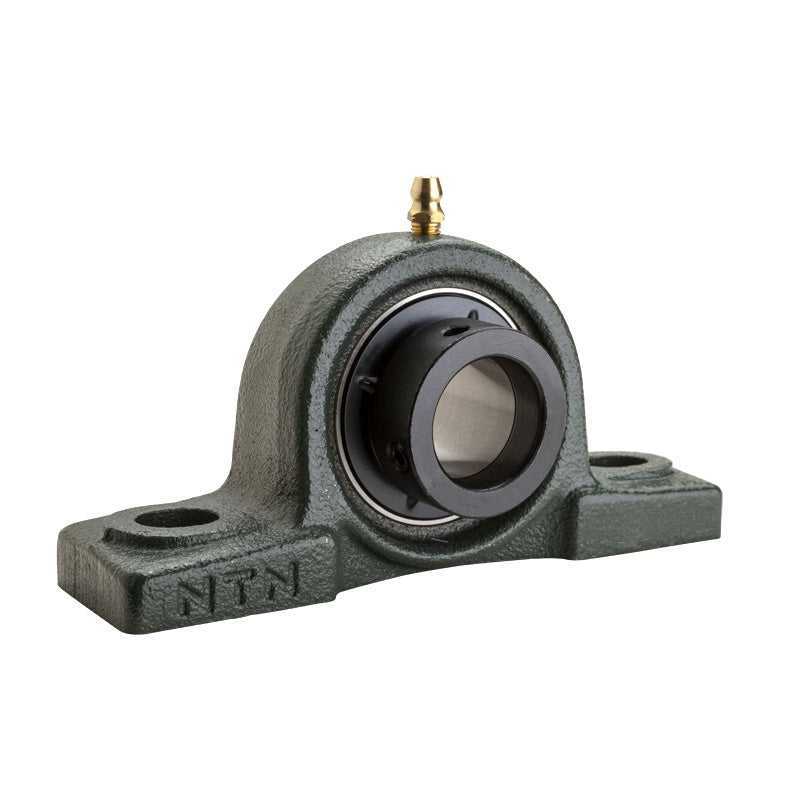

NTN UELP313D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP313D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UELP
- Bolt Hole Centres:
- 260mm
Technical
Technical
| Shaft diameter | 65mm |
|---|---|
| H | 90mm |
| L | 340mm |
| J | 260mm |
| A | 90mm |
| N | 25mm |
| N<sub>1</sub> | 38mm |
| H<sub>1</sub> | 33mm |
| H<sub>2</sub> | 176mm |
| L<sub>1</sub> | 105mm |
| B<sub>1</sub> | 85.7mm |
| S | 32.55mm |
| Fixing bolt | M20 |
| Mass | 11 kg |
