SKU: UELT205D1W3-NTN

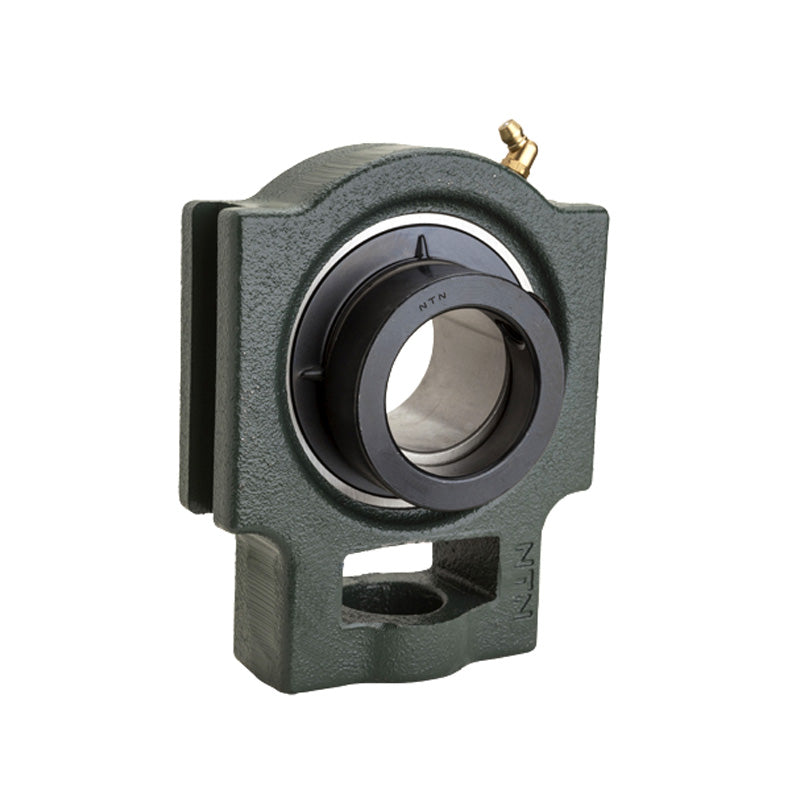

NTN UELT205D1W3 Metric Cast Iron Take Up Unit with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELT205D1W3 Metric Cast Iron Take Up Unit with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UELT
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 12mm |
| H<sub>2</sub> | 51mm |
| N<sub>2</sub> | 32mm |
| N | 19mm |
| L<sub>3</sub> | 51mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 76mm |
| H | 89mm |
| L | 97mm |
| A<sub>2</sub> | 24mm |
| A | 32mm |
| r | 35mm |
| L<sub>1</sub> | 62mm |
| B<sub>1</sub> | 44.4mm |
| S | 17.45mm |
| Mass | 0.9 kg |
