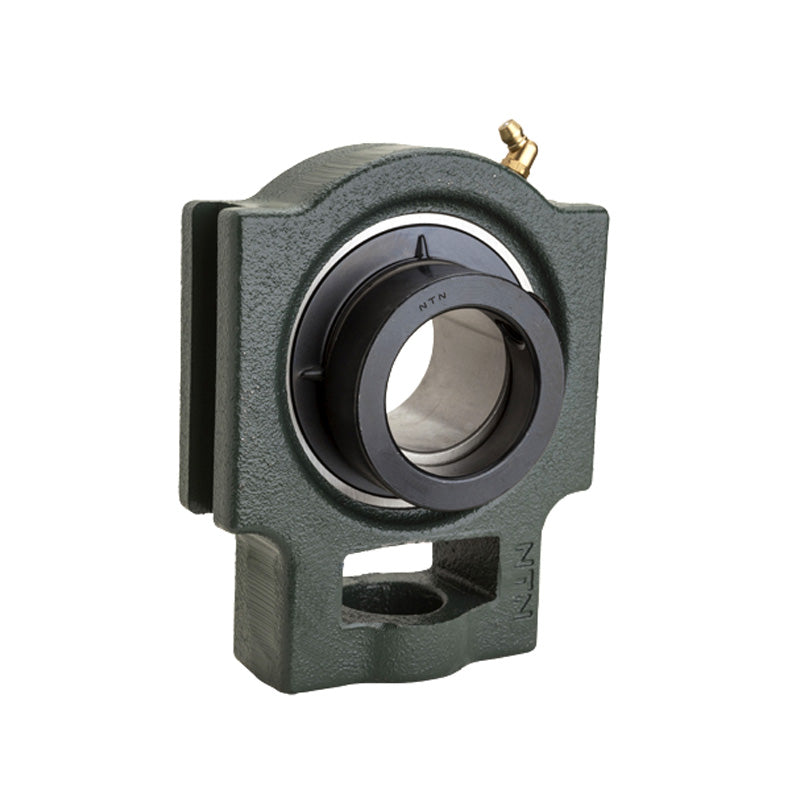

NTN UELT209-111D1 Imperial Cast Iron Take Up Unit with 1-11/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELT209-111D1 Imperial Cast Iron Take Up Unit with 1-11/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Description
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UELT
Technical
Technical
| Shaft diameter | 1-11/16 inch |
|---|---|
| N<sub>1</sub> | 3/4 inch |
| L<sub>2</sub> | 23/32 inch |
| H<sub>2</sub> | 3-9/32 inch |
| N<sub>2</sub> | 1-15/16 inch |
| N | 1-5/32 inch |
| L<sub>3</sub> | 3-9/32 inch |
| A<sub>1</sub> | 0.63 inch |
| H<sub>1</sub> | 4-1/64 inch |
| H | 4-19/32 inch |
| L | 5-23/32 inch |
| A<sub>2</sub> | 1-3/8 inch |
| A | 1-15/16 inch |
| r | 2-1/4 inch |
| L<sub>1</sub> | 3-15/32 inch |
| B<sub>1</sub> | 2.217 inch |
| S | 0.843 inch |
| Mass | 5.5 lbs |
