SKU: UELT213-209D1-NTN

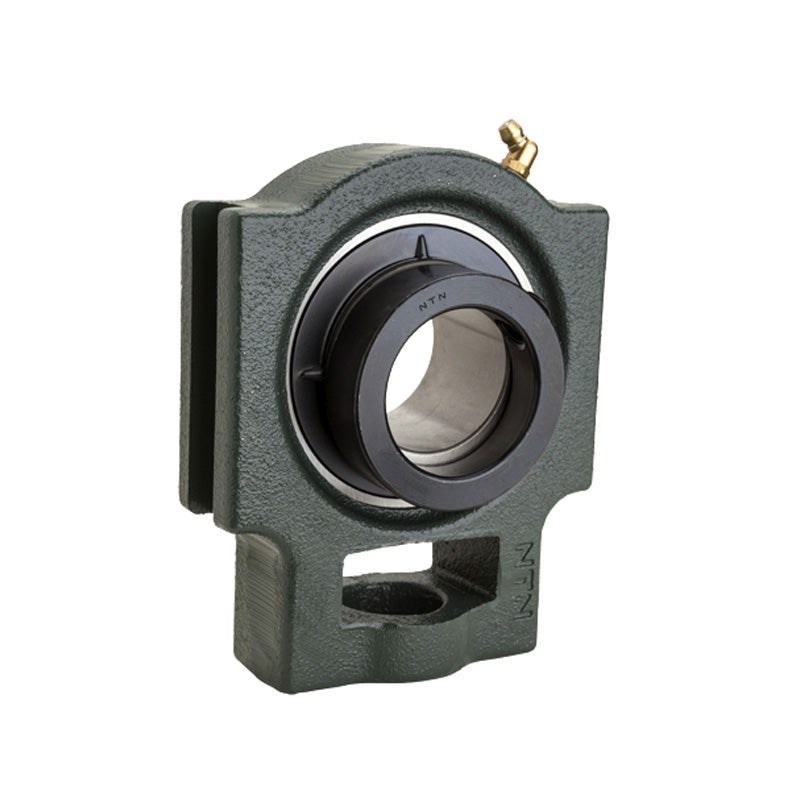

NTN UELT213-209D1 Imperial Cast Iron Take Up Unit with 2-9/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELT213-209D1 Imperial Cast Iron Take Up Unit with 2-9/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65.09mm = 2.563 (2-9/16) inch
- Style:
- UELT
Technical
Technical
| Shaft diameter | 2-9/16 inch |
|---|---|
| N<sub>1</sub> | 1-1/4 inch |
| L<sub>2</sub> | 29/32 inch |
| H<sub>2</sub> | 4-3/8 inch |
| N<sub>2</sub> | 2-3/4 inch |
| N | 1-5/8 inch |
| L<sub>3</sub> | 4-3/4 inch |
| A<sub>1</sub> | 1.024 inch |
| H<sub>1</sub> | 5-15/16 inch |
| H | 6-9/16 inch |
| L | 8-13/16 inch |
| A<sub>2</sub> | 1-23/32 inch |
| A | 2-3/4 inch |
| r | 3-7/16 inch |
| L<sub>1</sub> | 5-13/32 inch |
| B<sub>1</sub> | 3.374 inch |
| S | 1.344 inch |
| Mass | 17 lbs |
