• UFL002 Aluminium 2 Bolt Oval Bearing with Lock Collar 15mm Bore
1 1

SKU: UFL002

UFL002 Aluminium 2 Bolt Oval Bearing with Lock Collar 15mm Bore

UFL002 Aluminium 2 Bolt Oval Bearing with Lock Collar 15mm Bore
$16.65 ex VAT
$16.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.15
4+ $10.52
9+ $10.40
19+ $10.27
49+ $10.15
99+ $10.02
499+ $9.39
999+ $9.27
1999+ $9.14
2999+ $9.02
4999+ $8.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

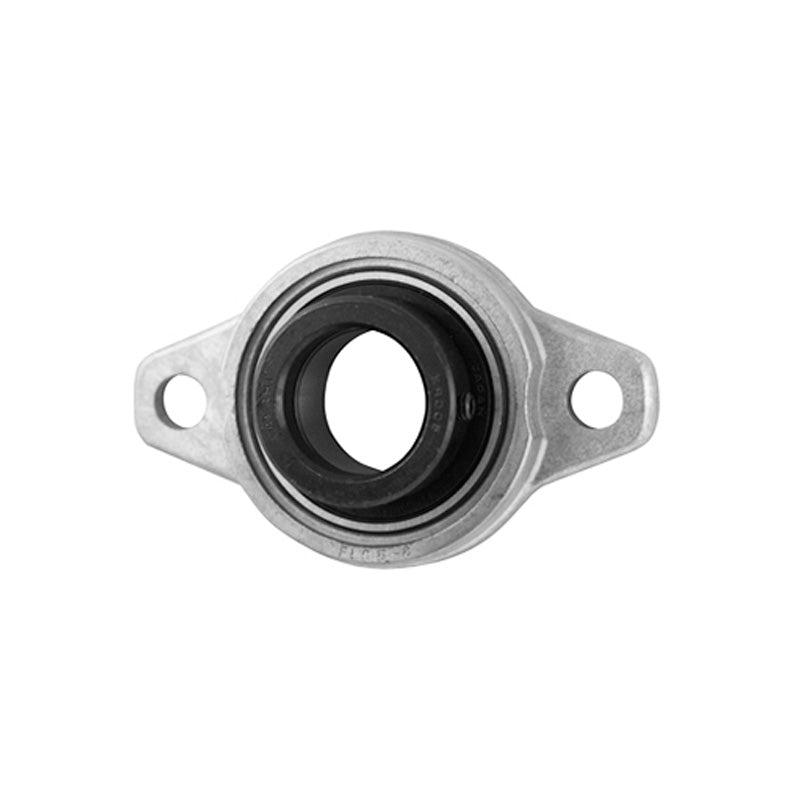

UFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15mm
Style:
UFL
Bolt Hole Centres:
53mm
Technical
d 15mm
a 67mm
e 53mm
g 6.5mm
l 13mm
N 7mm
b 42mm
n 4.5mm
Bi 18.5mm
d1 22mm
t 22mm
z 20.5mm
Recommended fixing screw VI6
Weight 0.11 kg
Dynamic load 5586 N ~ 569.613 kgf
Static load 2842 N ~ 289.803 kgf
