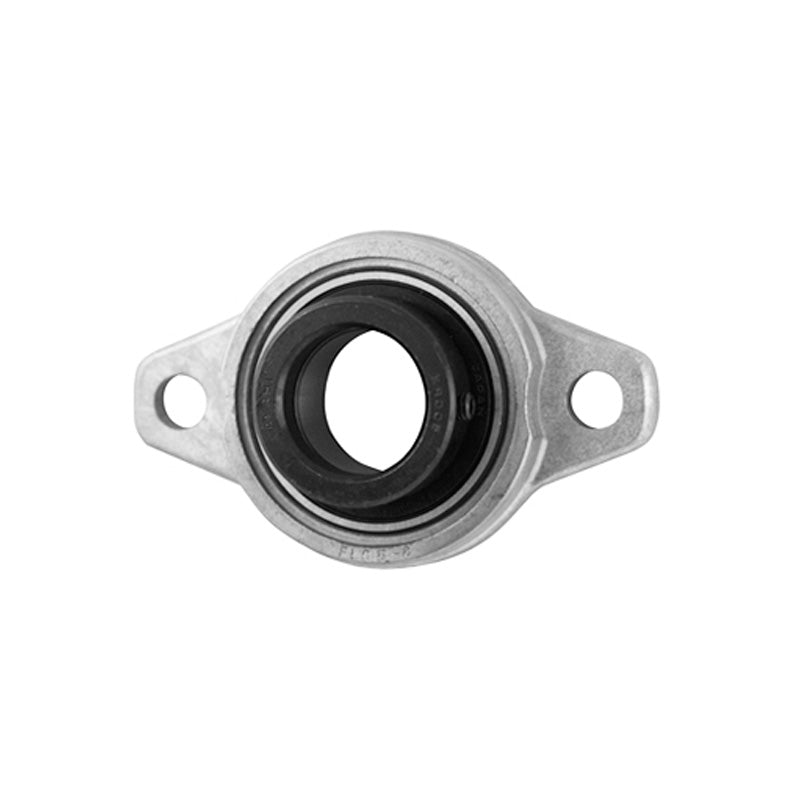

• UFL003 Aluminium 2 Bolt Oval Bearing with Lock Collar 17mm Bore
1 1

SKU: UFL003

UFL003 Aluminium 2 Bolt Oval Bearing with Lock Collar 17mm Bore

UFL003 Aluminium 2 Bolt Oval Bearing with Lock Collar 17mm Bore
$17.86 ex VAT
$17.86 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.96
4+ $11.29
9+ $11.16
19+ $11.02
49+ $10.89
99+ $10.75
499+ $10.08
999+ $9.95
1999+ $9.81
2999+ $9.68
4999+ $9.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17mm
Style:
UFL
Bolt Hole Centres:
56mm
Technical
d 17mm
a 71mm
e 56mm
g 7mm
l 14mm
N 7mm
b 46mm
n 5mm
Bi 20.5mm
d1 25mm
t 23.5mm
z 22.5mm
Recommended fixing screw M6
Weight 0.14 kg
Dynamic load 5978 N ~ 609.586 kgf
Static load 3283 N ~ 334.773 kgf
