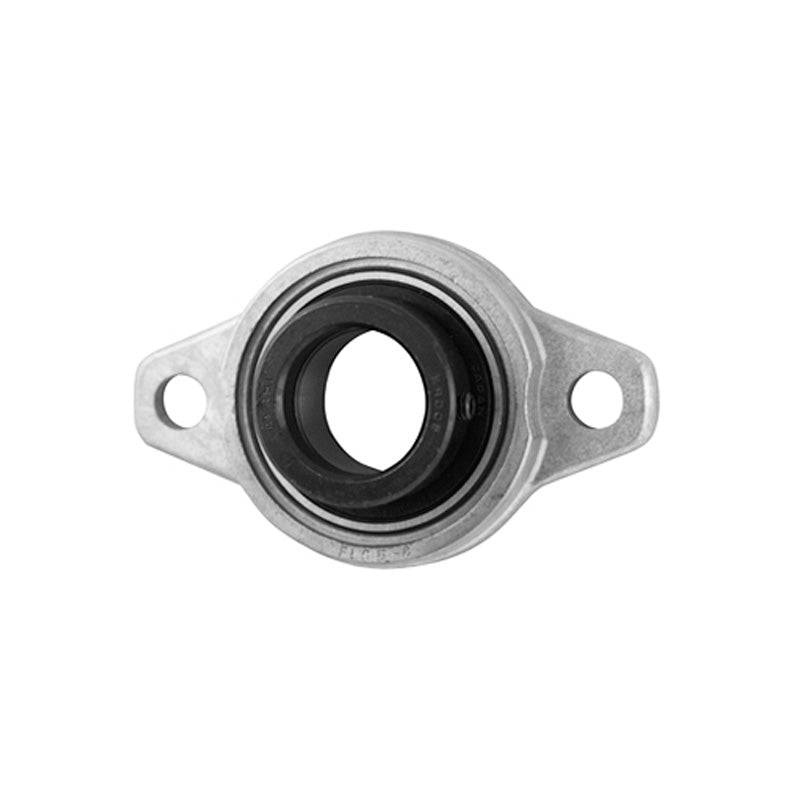

• UFL004 Aluminium 2 Bolt Oval Bearing with Lock Collar 20mm Bore
1 1

SKU: UFL004

UFL004 Aluminium 2 Bolt Oval Bearing with Lock Collar 20mm Bore

UFL004 Aluminium 2 Bolt Oval Bearing with Lock Collar 20mm Bore
$19.11 ex VAT
$19.11 ex VAT
Sale Sold out

In stock

Price Break
3+ $12.80
4+ $12.08
9+ $11.94
19+ $11.79
49+ $11.65
99+ $11.51
499+ $10.79
999+ $10.64
1999+ $10.50
2999+ $10.36
4999+ $10.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Style:
UFL
Bolt Hole Centres:
71mm
Technical
d 20mm
a 90mm
e 71mm
g 8mm
l 16mm
N 10mm
b 55mm
n 6mm
Bi 24.5mm
d1 30mm
t 27mm
z 26mm
Recommended fixing screw M8
Weight 0.23 kg
Dynamic load 9359 N ~ 954.352 kgf
Static load 5047 N ~ 514.651 kgf
