• UFL005 Aluminium 2 Bolt Oval Bearing with Lock Collar 25mm Bore
1 1

SKU: UFL005

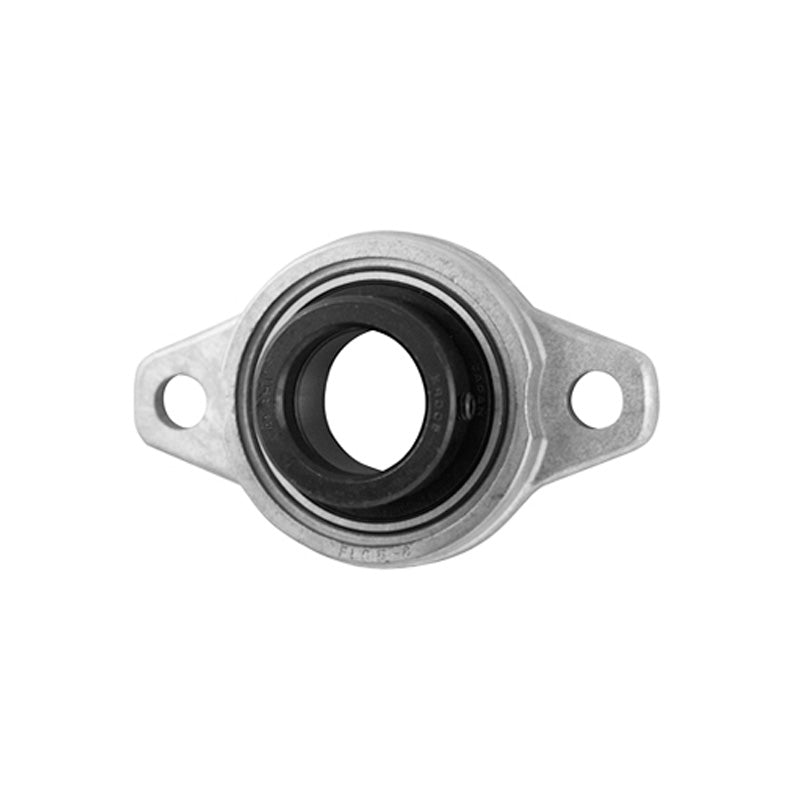

UFL005 Aluminium 2 Bolt Oval Bearing with Lock Collar 25mm Bore

UFL005 Aluminium 2 Bolt Oval Bearing with Lock Collar 25mm Bore
$20.50 ex VAT
$20.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.74
4+ $12.96
9+ $12.81
19+ $12.65
49+ $12.50
99+ $12.35
499+ $11.57
999+ $11.42
1999+ $11.27
2999+ $11.11
4999+ $10.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Style:
UFL
Bolt Hole Centres:
75mm
Technical
d 25mm
a 95mm
e 75mm
g 8mm
l 16mm
N 10mm
b 60mm
n 6mm
Bi 25.5mm
d1 36mm
t 28mm
z 27.5mm
Recommended fixing screw M8
Weight 0.27 kg
Dynamic load 10094 N ~ 1029.302 kgf
Static load 5831 N ~ 594.597 kgf
