• UFL006 Aluminium 2 Bolt Oval Bearing with Lock Collar 30mm Bore
1 1

SKU: UFL006

UFL006 Aluminium 2 Bolt Oval Bearing with Lock Collar 30mm Bore

UFL006 Aluminium 2 Bolt Oval Bearing with Lock Collar 30mm Bore
$21.60 ex VAT
$21.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $14.47
4+ $13.66
9+ $13.49
19+ $13.33
49+ $13.17
99+ $13.01
499+ $12.19
999+ $12.03
1999+ $11.87
2999+ $11.71
4999+ $11.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

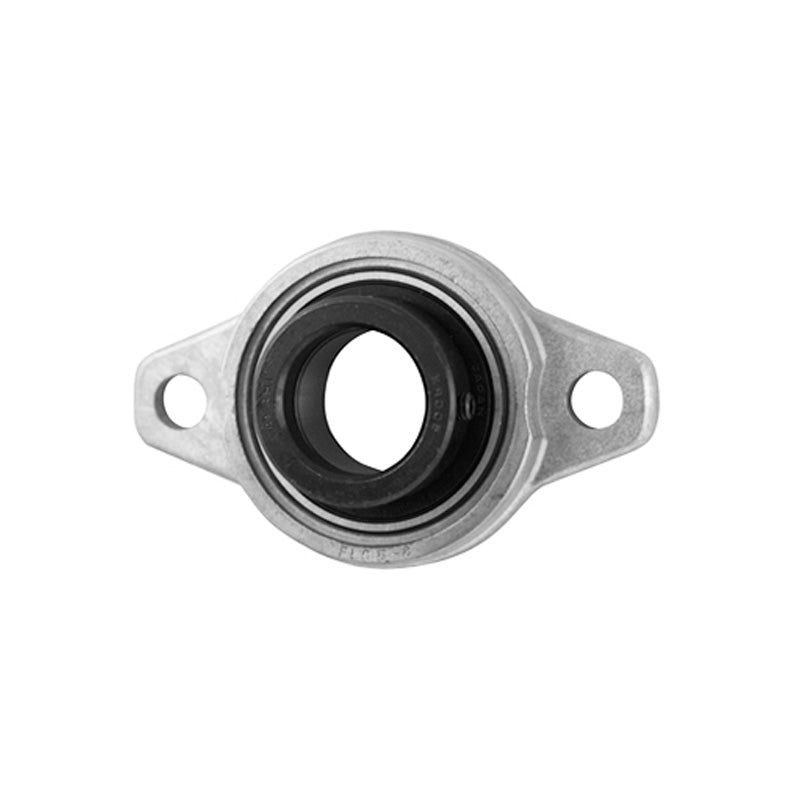

UFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Style:
UFL
Bolt Hole Centres:
85mm
Technical
d 30mm
a 112mm
e 85mm
g 9mm
l 18mm
N 13mm
b 70mm
n 6.5mm
Bi 26.5mm
d1 42mm
t 31mm
z 29mm
Recommended fixing screw M10
Weight 0.39 kg
Dynamic load 13230 N ~ 1349.085 kgf
Static load 8281 N ~ 844.427 kgf
