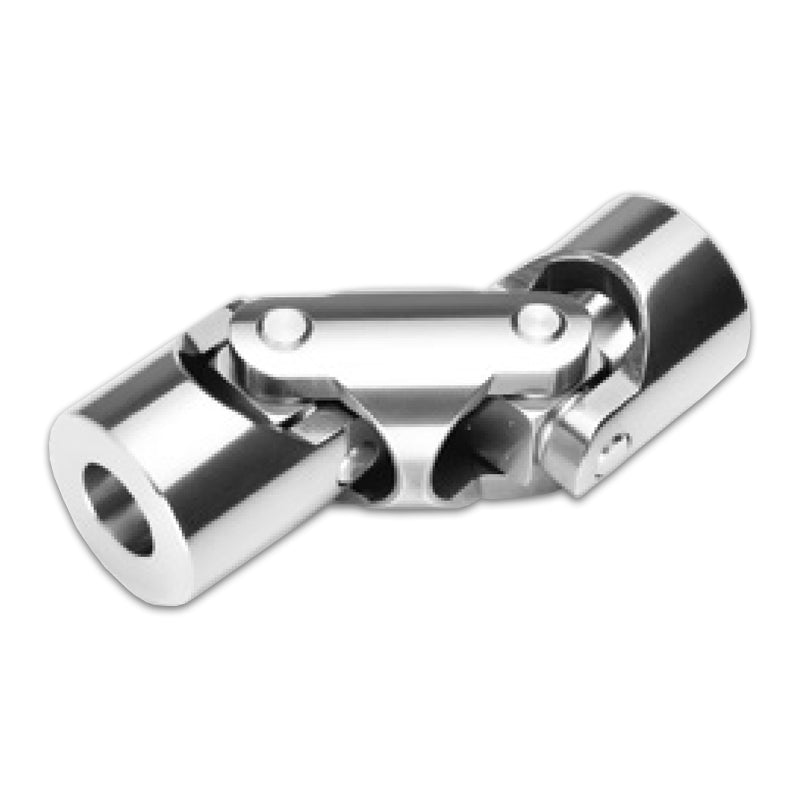

• Major Brand UJDP16X8ST Stainless Steel 304 Universal Double Joint with Plain Bearing 8x16x62mm
1 1

SKU: UJDP16X8ST-MB

Major Brand UJDP16X8ST Stainless Steel 304 Universal Double Joint with Plain Bearing 8x16x62mm

Major Brand UJDP16X8ST Stainless Steel 304 Universal Double Joint with Plain Bearing 8x16x62mm
$131.49 ex VAT
$131.49 ex VAT
Sale Sold out

In stock

Price Break
3+ $88.07
5+ $83.13
9+ $82.14
19+ $81.15
49+ $80.16
74+ $79.17
99+ $74.22
199+ $73.23
249+ $72.24
499+ $71.25
999+ $69.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Universal Joints
Inside Diameter:
8mm
Outside Diameter:
16mm
Length:
62mm
Style:
UJDP
Technical
Bore d H7 8mm
Diameter D 16mm
Overall length L3 62mm
Pivot to face centre L1 20mm
Pivot to pivot centre L4 22mm
Hub length C 11mm
Maximum working angle 90 degrees
Maximum speed 1000 rpm
Maximum power 6kW
Maximum torque 600 Nm
Gaiter type UJG01M16
Weight KG 0.08 kg
