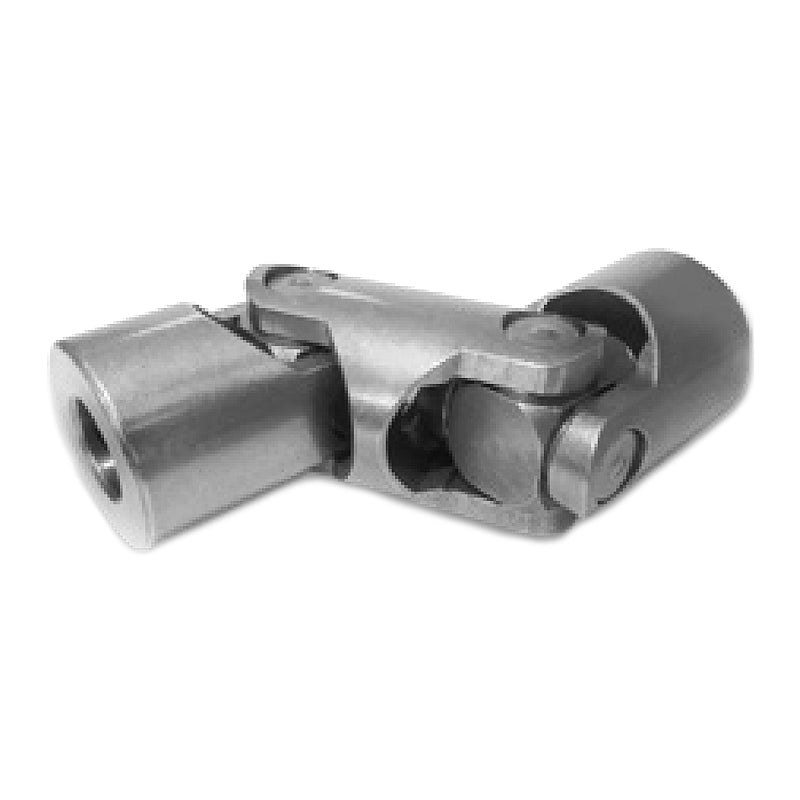

• Major Brand UJDP22X10 Steel Universal Double Joint with Plain Bearing 10x22x74mm
1 1

SKU: UJDP22X10-MB

Major Brand UJDP22X10 Steel Universal Double Joint with Plain Bearing 10x22x74mm

Major Brand UJDP22X10 Steel Universal Double Joint with Plain Bearing 10x22x74mm
$97.05 ex VAT
$97.05 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.01
5+ $61.36
9+ $60.63
19+ $59.89
49+ $59.16
74+ $58.43
99+ $54.78
199+ $54.05
249+ $53.32
499+ $52.59
999+ $51.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Universal Joints
Inside Diameter:
10mm
Outside Diameter:
22mm
Length:
74mm
Style:
UJDP
Technical
Bore d H7 10mm
Diameter D 22mm
Overall length L3 74mm
Pivot to face centre L1 24mm
Pivot to pivot centre L4 26mm
Hub length C 12mm
Maximum working angle 90 degrees
Maximum speed 1000 rpm
Maximum power 6kW
Maximum torque 600 Nm
Gaiter type UJG03M22
Weight KG 0.15 kg
