• Major Brand UJDP36X18 Steel Universal Double Joint with Plain Bearing 18x36x114mm
1 1

SKU: UJDP36X18-MB

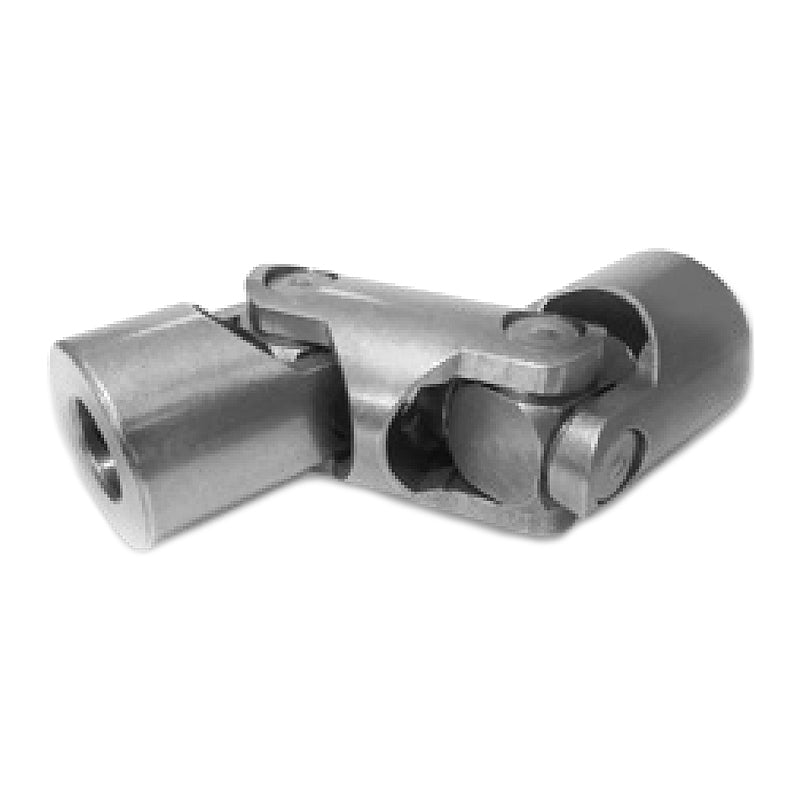

Major Brand UJDP36X18 Steel Universal Double Joint with Plain Bearing 18x36x114mm

Major Brand UJDP36X18 Steel Universal Double Joint with Plain Bearing 18x36x114mm
$143.23 ex VAT
$143.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $95.94
5+ $90.55
9+ $89.47
19+ $88.39
49+ $87.31
74+ $86.24
99+ $80.85
199+ $79.77
249+ $78.69
499+ $77.61
999+ $75.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Universal Joints
Inside Diameter:
18mm
Outside Diameter:
36mm
Length:
114mm
Style:
UJDP
Technical
Bore d H7 18mm
Diameter D 36mm
Overall length L3 114mm
Pivot to face centre L1 37mm
Pivot to pivot centre L4 40mm
Hub length C 17mm
Maximum working angle 90 degrees
Maximum speed 1000 rpm
Maximum power 6kW
Maximum torque 600 Nm
Gaiter type UJG2M36
Weight KG 0.7 kg
