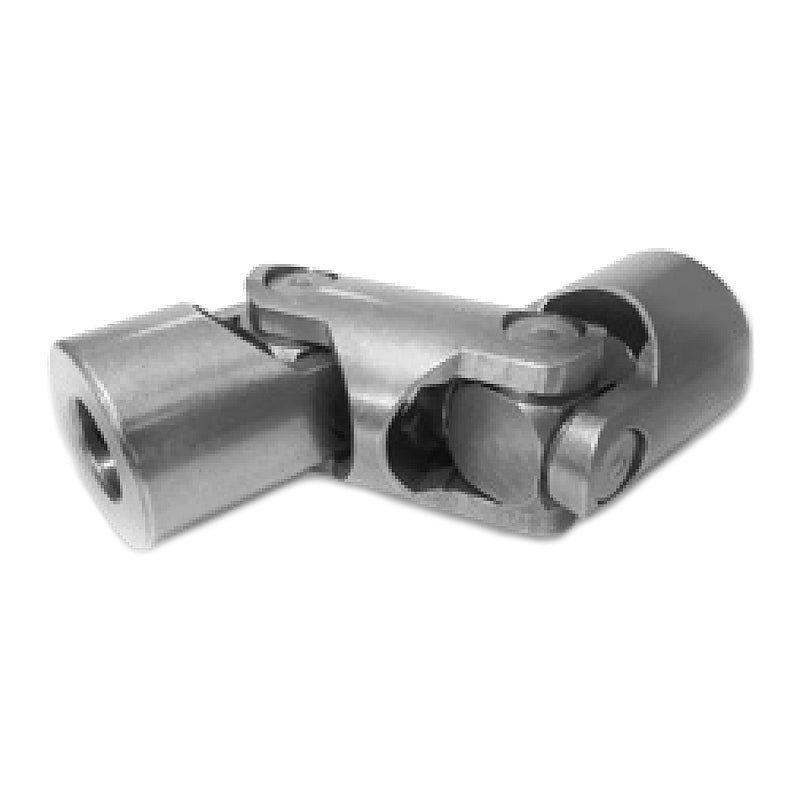

• Major Brand UJDP50X25 Steel Universal Double Joint with Plain Bearing 25x50x163mm - Allow 2-3 Days
1 1

SKU: UJDP50X25-MB

Major Brand UJDP50X25 Steel Universal Double Joint with Plain Bearing 25x50x163mm - Allow 2-3 Days

Major Brand UJDP50X25 Steel Universal Double Joint with Plain Bearing 25x50x163mm - Allow 2-3 Days
$247.40 ex VAT
$247.40 ex VAT
Sale Sold out

In stock

Price Break
3+ $165.72
5+ $156.41
9+ $154.55
19+ $152.68
49+ $150.82
74+ $148.96
99+ $139.65
199+ $137.79
249+ $135.93
499+ $134.06
999+ $130.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Universal Joints
Inside Diameter:
25mm
Outside Diameter:
50mm
Length:
163mm
Style:
UJDP
Technical
Bore d H7 25mm
Diameter D 50mm
Overall length L3 163mm
Pivot to face centre L1 54mm
Pivot to pivot centre L4 55mm
Hub length C 26mm
Maximum working angle 90 degrees
Maximum speed 1000 rpm
Maximum power 6kW
Maximum torque 600 Nm
Gaiter type UJG5M50
Weight KG 2 kg
