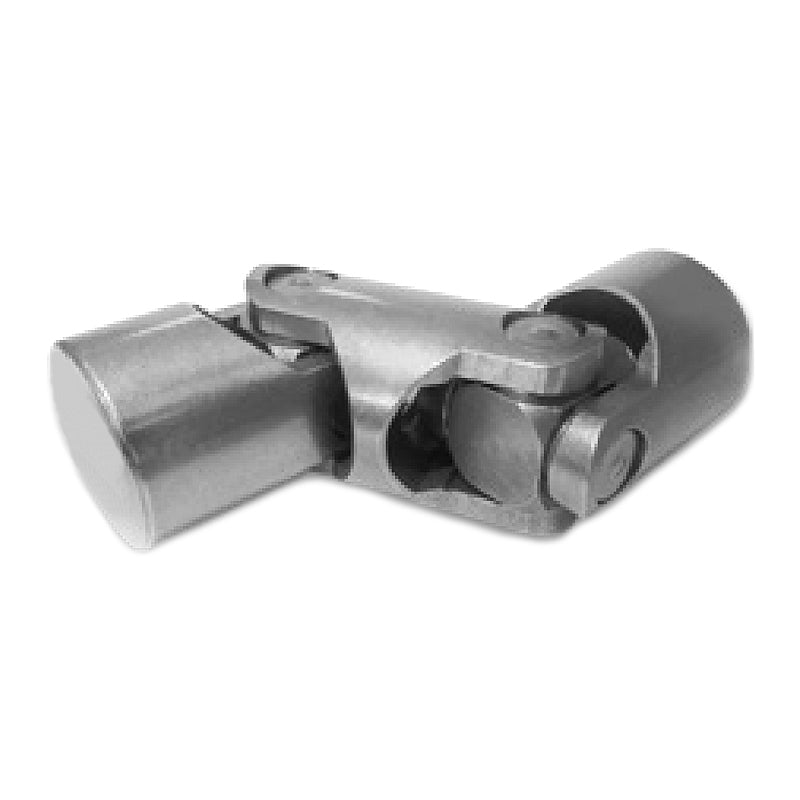

• Major Brand UJDPL22XSOL Steel Unbored Long Universal Double Joint with Plain Bearing and Solid Ends 22x115mm
1 1

SKU: UJDPL22XSOL-MB

Major Brand UJDPL22XSOL Steel Unbored Long Universal Double Joint with Plain Bearing and Solid Ends 22x115mm

Major Brand UJDPL22XSOL Steel Unbored Long Universal Double Joint with Plain Bearing and Solid Ends 22x115mm
$114.03 ex VAT
$114.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.38
5+ $72.09
9+ $71.23
19+ $70.38
49+ $69.52
74+ $68.66
99+ $64.37
199+ $63.51
249+ $62.65
499+ $61.79
999+ $60.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Universal Joints
Inside Diameter:
Unbored
Outside Diameter:
22mm
Length:
115mm
Style:
UJDPL
Technical
Bore Unbored
Diameter D 22mm
Overall length L3 115mm
Pivot centre L1 44.5mm
Pivot to pivot centre L4 26mm
Hub length C 32.5mm
Maximum working angle 90 degrees
Maximum speed 1000 rpm
Maximum power 6kW
Maximum torque 600 Nm
Gaiter type UJG03M22
Weight KG 0.13 kg
