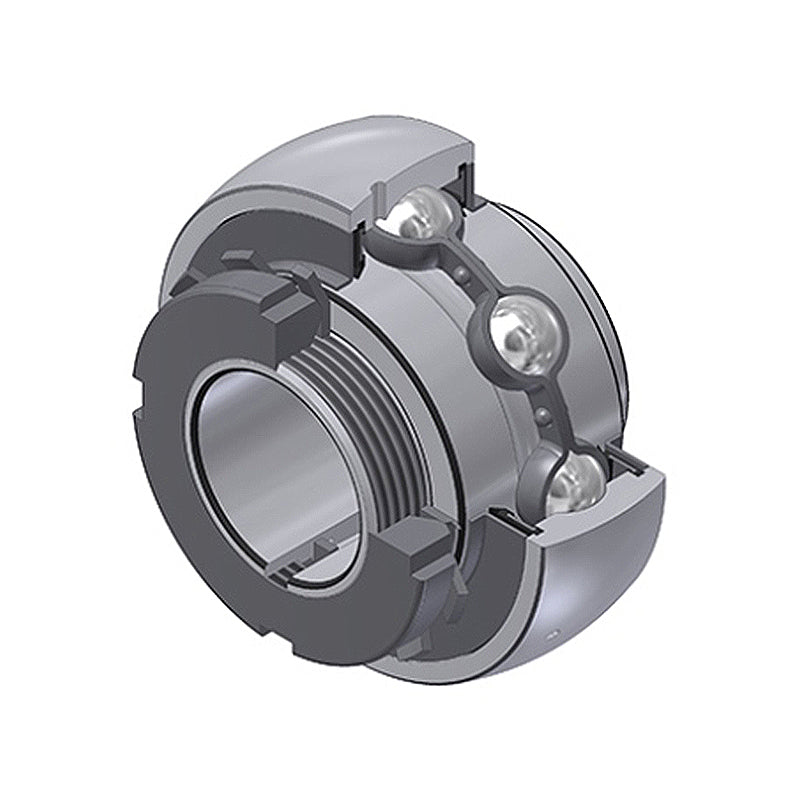

SNR UK308G2H-20 Imperial Full Width Spherical Outer Bearing Insert 1-1/4 inch Bore 90mm Outside Diameter with Adapter Sleeve - Allow 2-3 Days

SNR UK-H Full Width Spherical Outer Bearing Insert with Adaptor Sleeve: This bearing insert is engineered for versatile performance, featuring a wide range of capabilities. Each steel insert includes a single lip seal and slinger on both sides, along with a wide inner ring design. It comes with an adapter sleeve type H23 included, offering increased internal clearance and enabling a concentric and force-fit connection of the bearing on the shaft, suitable for frequent changes of rotation direction and high rotation speeds, ensuring smooth running. Additionally, it incorporates a zinc-coated sheet steel retainer over-molded with NBR, featuring an axially preloaded seal lip and a preconnected, zinc-coated sheet steel slinger for enhanced protection against mechanical impacts. This insert is designed to withstand medium to high rotation speeds, providing additional protection against particles and ensuring reliable performance in demanding environments.
Benefits: High-quality brand, high-performance, precision-engineered

Brand / Quality:

SNR - High Quality

Inside Diameter:

31.75mm = 1.25 (1-1/4) inch

Outside Diameter:

90mm

Width:

46mm

Seals / Shields:

Rubber Sealed

Style:

UK
