SKU: UKC210D1/H2310X-NTN
NTN UKC210D1/H2310X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 45mm Bore Insert 120mm Outside Dia - Allow 2-3 Days
NTN UKC210D1/H2310X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 45mm Bore Insert 120mm Outside Dia - Allow 2-3 Days
Regular price
$117.74
ex VAT
Regular price
Sale price
$117.74
ex VAT
In stock
Price Break
3+
$87.71
4+
$84.17
9+
$82.40
19+
$79.74
49+
$77.97
99+
$73.54
499+
$62.02
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description

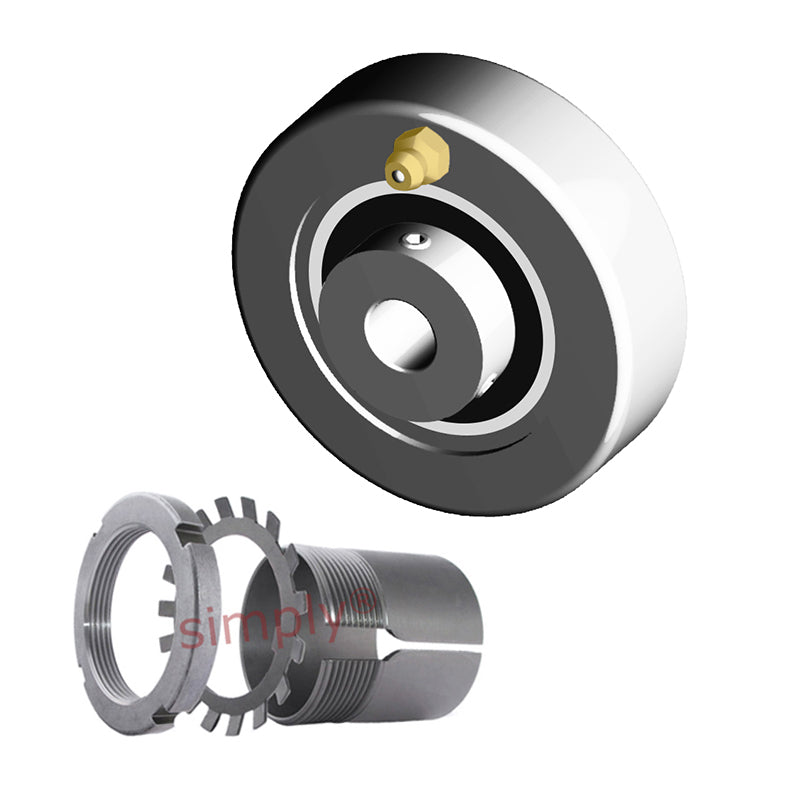

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKC
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| H | 120mm |
| A | 33mm |
| r | 2.5mm |
| B<sub>1</sub> | 55mm |
| Mass | 2.1 kg |
