SKU: UKC211/H2311

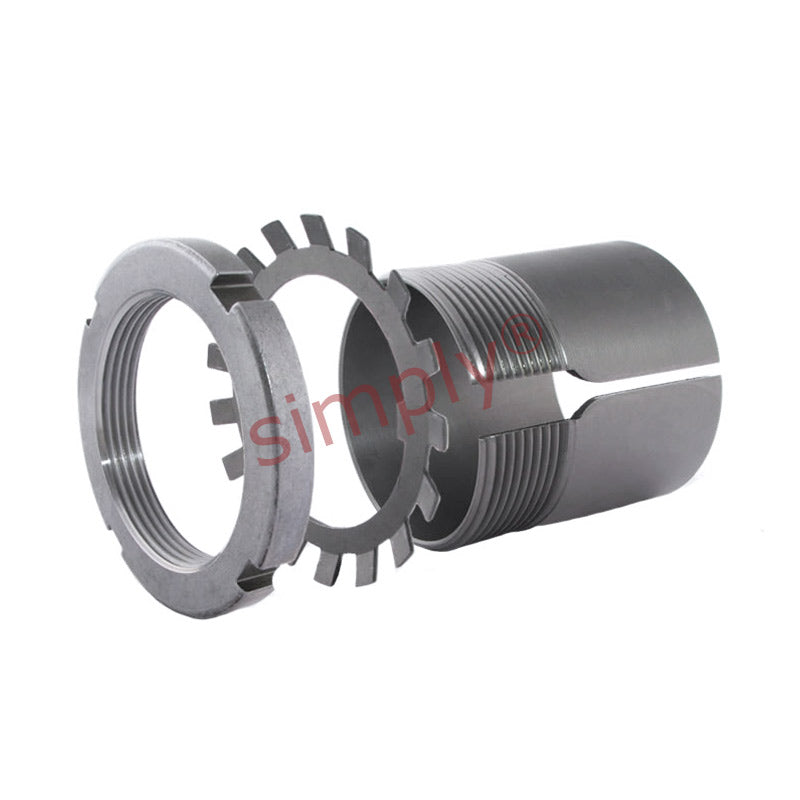

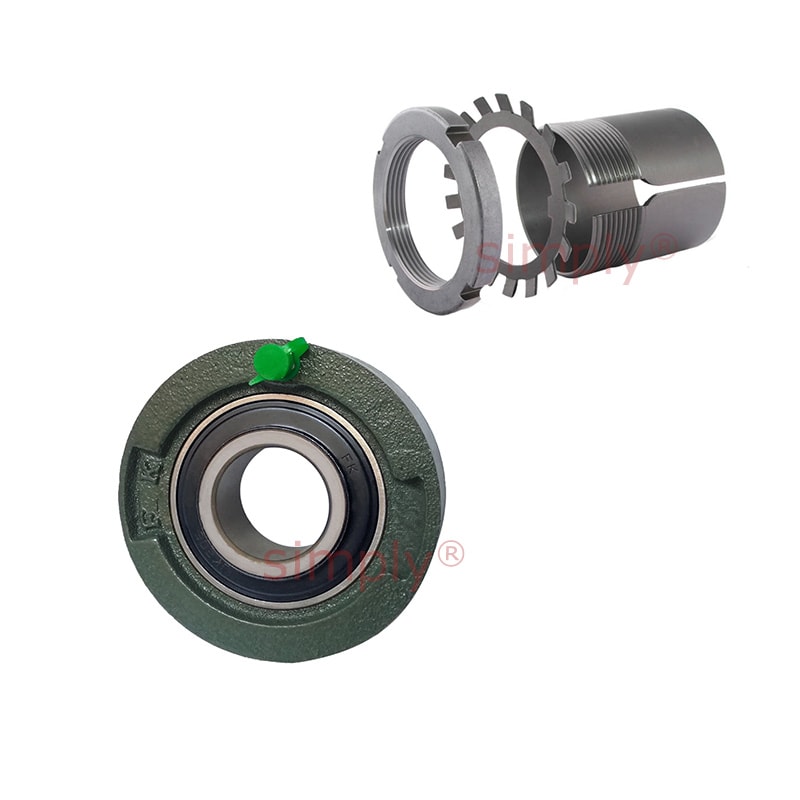

UKC211/H2311 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 50mm Bore Insert 125mm Outside Dia
- Regular price
- $76.75 ex VAT
- Sale price
- $76.75
- Regular price
-
Not in stock
Quantity Price Breaks
3
$68.31
4
$64.47
9
$63.70
19
$62.94
49
$62.17
99
$61.40
499
$57.56
999
$56.80
1999
$56.03
2999
$55.26
4999
$53.73
SKU:
UKC211/H2311
UKC211/H2311 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 50mm Bore Insert 125mm Outside Dia
- Regular price
- $76.75 ex VAT
- Sale price
- $76.75
- Regular price
-
Description

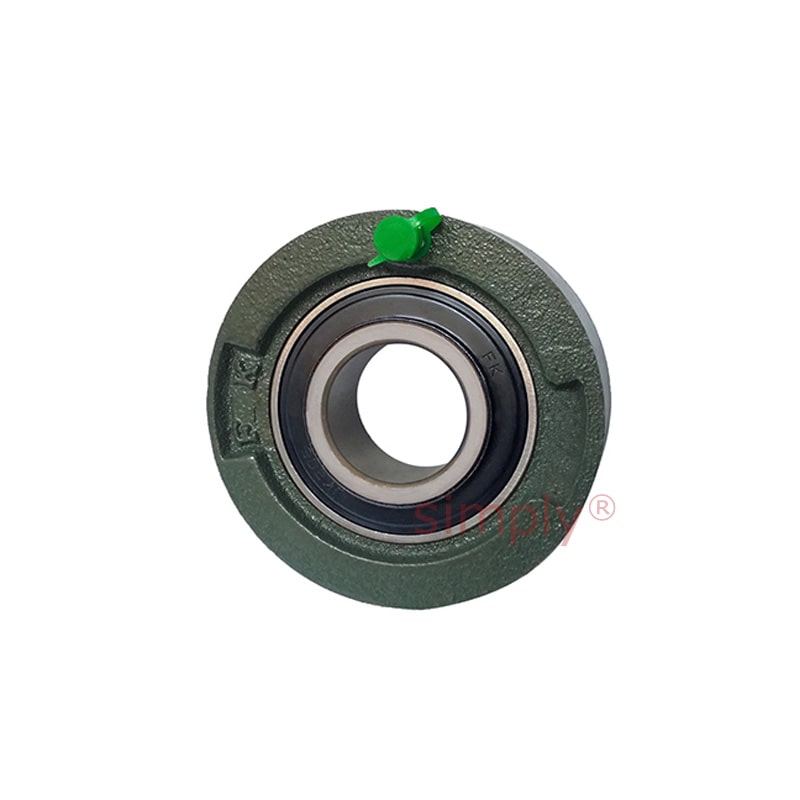

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
Technical
| Bore d | = | 50mm |
| Outer Dia a | = | 125mm |
| g | = | 35mm |
| r | = | 2.5mm |
| B | = | 59mm |
| Bearing No | = | UK211 |
| H2311 | = | Housing No |
| C211 | = | N/A |
