SKU: UKC211/HA2311

UKC211/HA2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-15/16 inch Bore Insert 4.9213 inch Outside Dia

$109.05 ex VAT
$109.05
ex VAT
Not in stock

Quantity Price Breaks

3 $97.05
4 $91.60
9 $90.51
19 $89.42
49 $88.33
99 $87.24
499 $81.79
999 $80.70
1999 $79.61
2999 $78.52
4999 $76.34
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UKC211/HA2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-15/16 inch Bore Insert 4.9213 inch Outside Dia
UKC211/HA2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-15/16 inch Bore Insert 4.9213 inch Outside Dia
UKC211/HA2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-15/16 inch Bore Insert 4.9213 inch Outside Dia
SKU: UKC211/HA2311

UKC211/HA2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-15/16 inch Bore Insert 4.9213 inch Outside Dia

$109.05 ex VAT
$109.05
ex VAT

Description

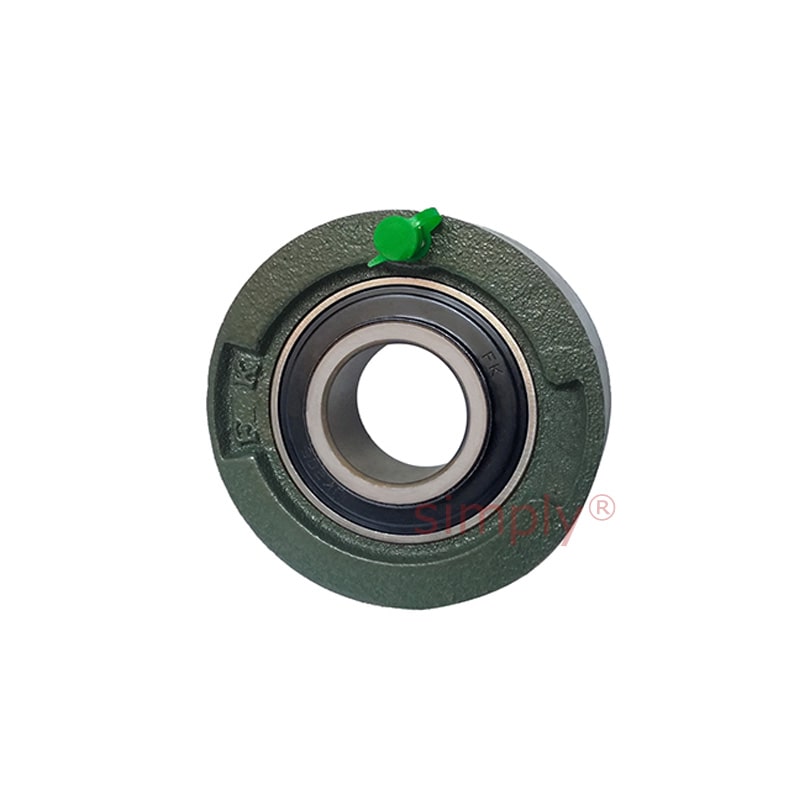

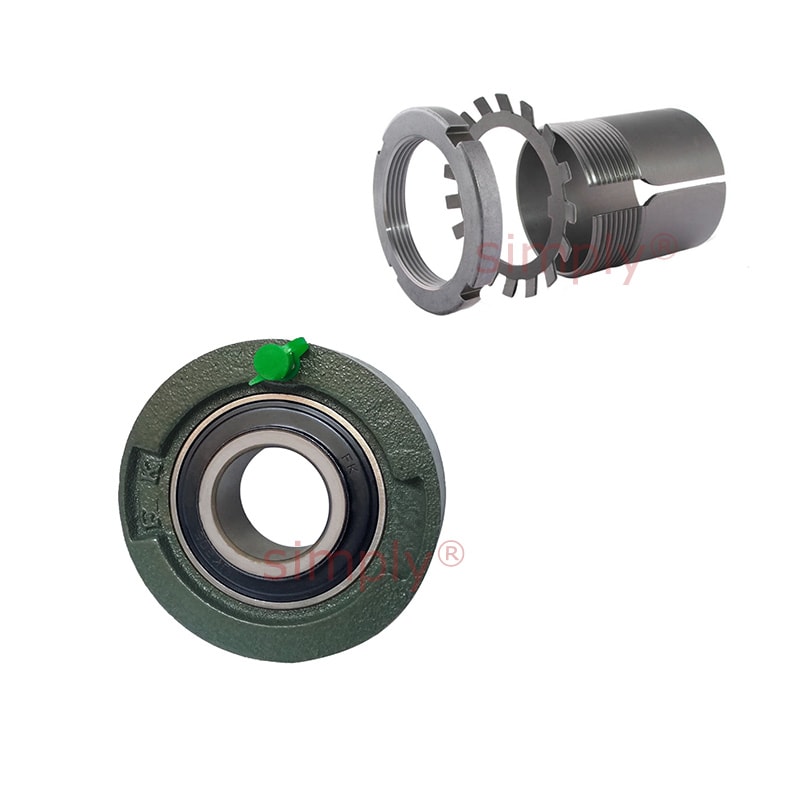

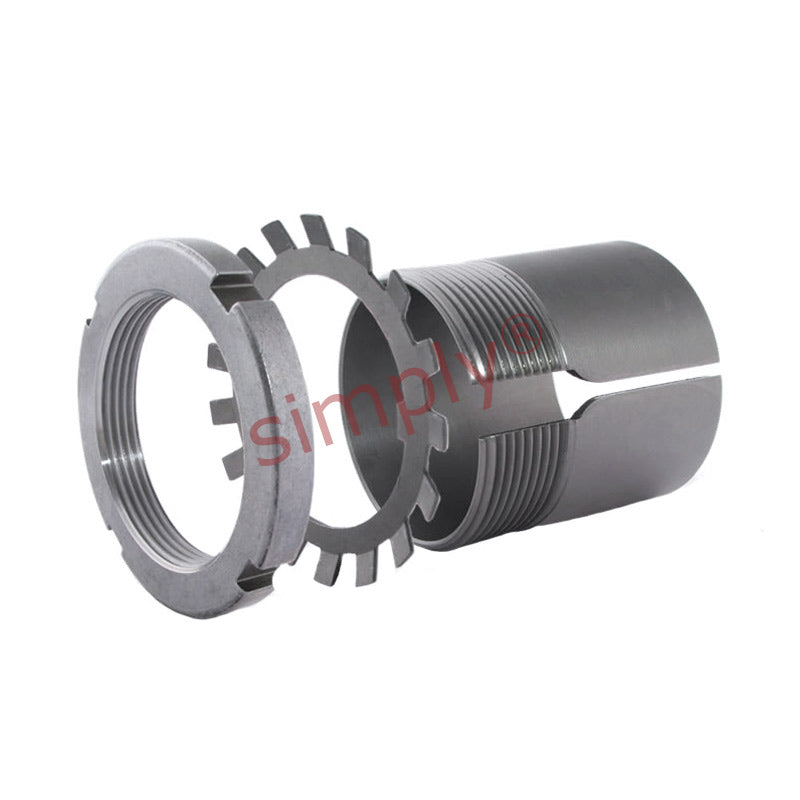

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert

Technical

Bore d = 1-15/16 inch
Outer Dia a = 4.9213 inch
g = 1-3/8 inch
r = 0.098 inch
B = 2.323 inch
Bearing No = UK211
HA2311 = Housing No
C211 = N/A
