SKU: UKC211D1/H2311X-NTN

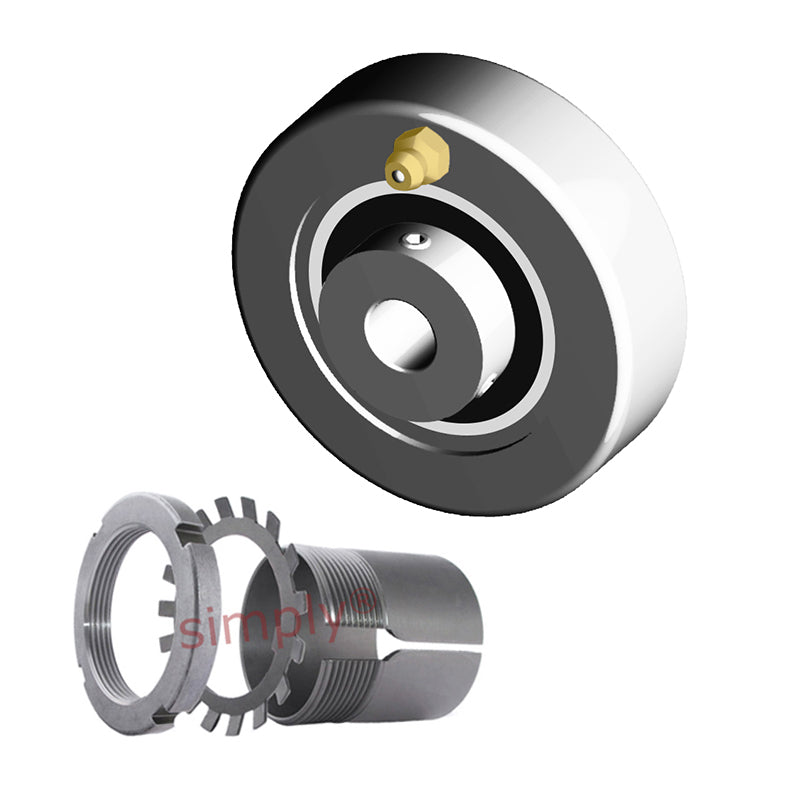

NTN UKC211D1/H2311X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 50mm Bore Insert 125mm Outside Dia - Allow 2-3 Days
NTN UKC211D1/H2311X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 50mm Bore Insert 125mm Outside Dia - Allow 2-3 Days
Regular price
$132.56
ex VAT
Regular price
Sale price
$132.56
ex VAT
In stock
Price Break
3+
$98.75
4+
$94.76
9+
$92.77
19+
$89.78
49+
$87.78
99+
$82.79
499+
$69.83
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKC
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 125mm |
| A | 35mm |
| r | 2.5mm |
| B<sub>1</sub> | 59mm |
| Mass | 2.3 kg |
