SKU: UKC213H-SNR
SNR UKC213H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 60mm Bore Insert 40mm Outside Dia - Allow 2-3 Days
SNR UKC213H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 60mm Bore Insert 40mm Outside Dia - Allow 2-3 Days
Regular price
$176.77
ex VAT
Regular price
Sale price
$176.77
ex VAT
In stock
Price Break
3+
$131.69
4+
$126.37
9+
$123.71
19+
$119.72
49+
$117.06
99+
$110.41
499+
$93.11
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UKC
Technical
Technical

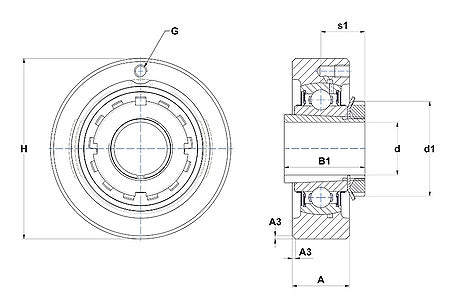

| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 40mm |
| A3 | 2mm |
| B1 | 65mm |
| d1 | 85mm |
| H | 140mm |
| s1 | 32mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.95 kg |
