SKU: UKC305H-SNR

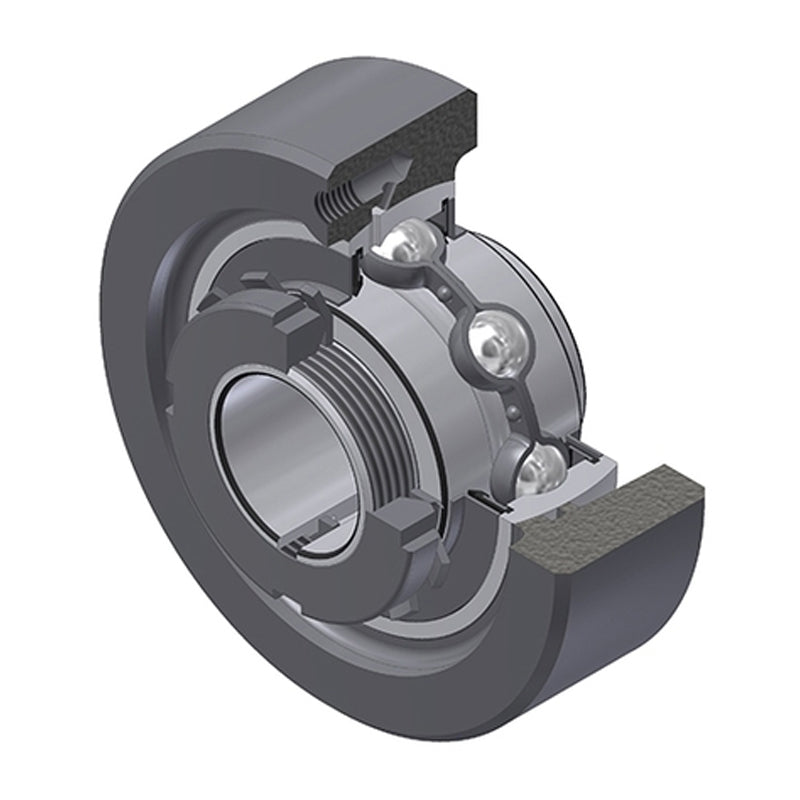

SNR UKC305H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 20mm Bore Insert 26mm Outside Dia - Allow 2-3 Days
SNR UKC305H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 20mm Bore Insert 26mm Outside Dia - Allow 2-3 Days
Regular price
$88.27
ex VAT
Regular price
Sale price
$88.27
ex VAT
In stock
Price Break
3+
$65.76
4+
$63.10
9+
$61.77
19+
$59.78
49+
$58.45
99+
$55.13
499+
$46.49
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 26mm |
| A3 | 2mm |
| B1 | 35mm |
| d1 | 38mm |
| H | 90mm |
| s1 | 21.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 22.36 kN |
| Static load C0 | 11.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.96 kg |
