SKU: UKC322H-SNR

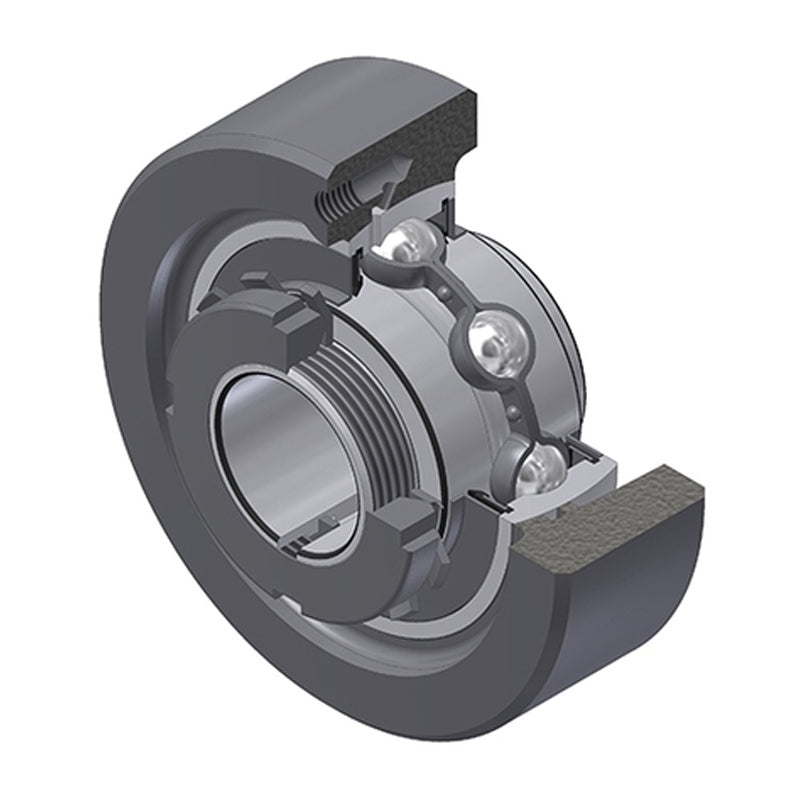

SNR UKC322H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 100mm Bore Insert 80mm Outside Dia - Allow 2-3 Days
SNR UKC322H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 100mm Bore Insert 80mm Outside Dia - Allow 2-3 Days
Regular price
$1,203.59
ex VAT
Regular price
Sale price
$1,203.59
ex VAT
In stock
Price Break
3+
$860.42
4+
$815.14
9+
$769.85
19+
$724.57
49+
$706.45
99+
$688.34
499+
$597.77
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 100mm |
| A | 80mm |
| A3 | 3.5mm |
| B1 | 105mm |
| d1 | 145mm |
| H | 300mm |
| s1 | 61mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 205 kN |
| Static load C0 | 178 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 29.4 kg |
