SKU: UKC328H-SNR

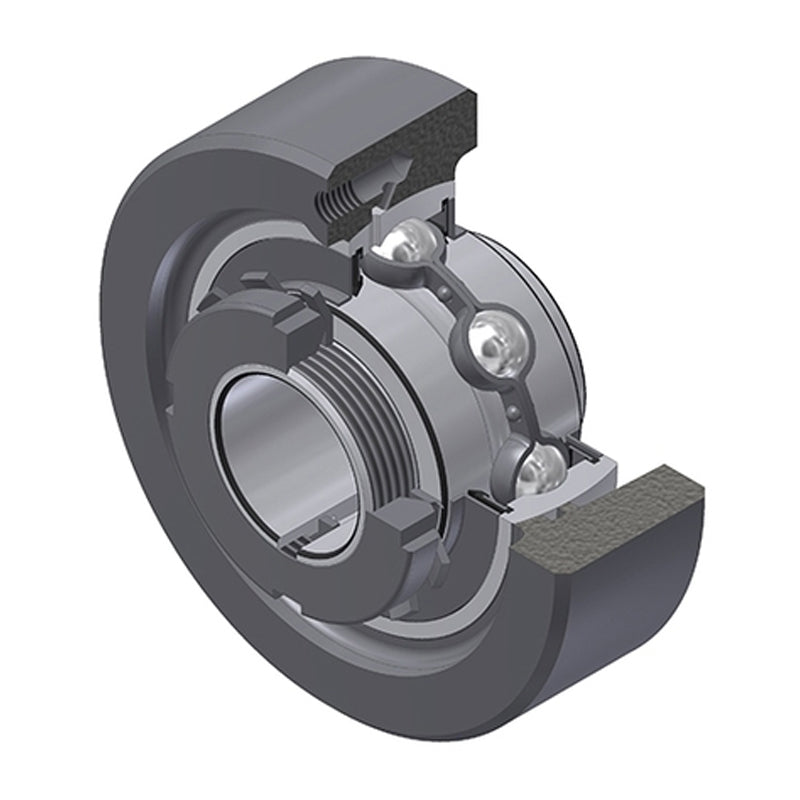

SNR UKC328H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 125mm Bore Insert 100mm Outside Dia - Allow 2-3 Days
SNR UKC328H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 125mm Bore Insert 100mm Outside Dia - Allow 2-3 Days
Regular price
$2,541.75
ex VAT
Regular price
Sale price
$2,541.75
ex VAT
In stock
Price Break
3+
$1,817.05
4+
$1,721.41
9+
$1,625.78
19+
$1,530.14
49+
$1,491.89
99+
$1,453.64
499+
$1,262.37
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 125mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 125mm |
| A | 100mm |
| A3 | 4.5mm |
| B1 | 131mm |
| d1 | 180mm |
| H | 360mm |
| s1 | 73mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 275 kN |
| Static load C0 | 272 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 50.8 kg |
