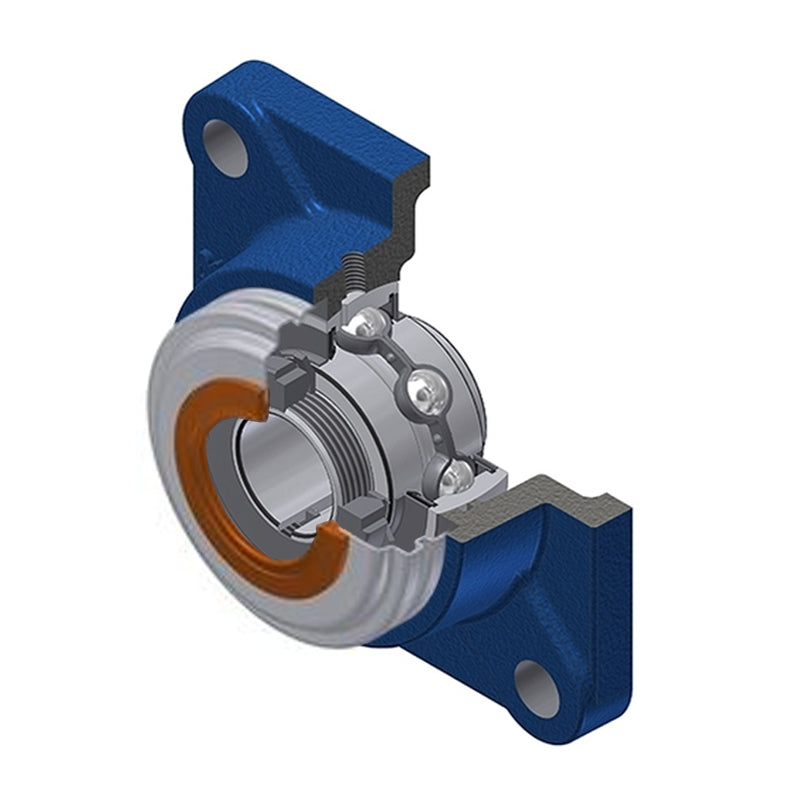

• SNR UKF210HCO Metric Four Bolt Square Cast Iron Housing Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UKF210HCO-SNR

SNR UKF210HCO Metric Four Bolt Square Cast Iron Housing Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Open Version - Allow 2-3 Days

SNR UKF210HCO Metric Four Bolt Square Cast Iron Housing Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Open Version - Allow 2-3 Days
$92.65 ex VAT
$92.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $62.06
4+ $58.57
9+ $57.87
19+ $57.18
49+ $56.48
99+ $55.78
499+ $52.30
999+ $51.60
1999+ $50.90
2999+ $50.20
4999+ $48.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UKF
Bolt Hole Centres:
111mm
Technical
--- Dimensions
Shaft diameter d 45mm
A 40mm
A1 16mm
A2 49.5mm
B 31mm
B1 55mm
d1 70mm
e 22mm
J 111mm
L 143mm
N 16mm
Dz 100mm
Z 59.3mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2310
Mass 2.701 kg
