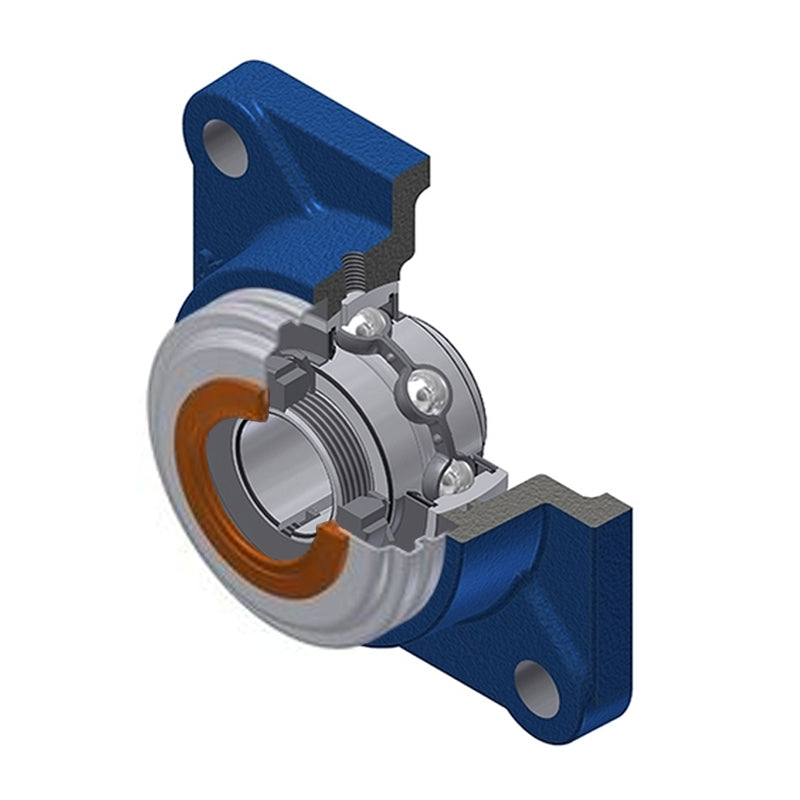

• SNR UKF211HCC Metric Four Bolt Square Cast Iron Housing Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 50mm Shaft - Closed Version - Allow 2-3 Days
  • SNR
1 2

SKU: UKF211HCC-SNR

SNR UKF211HCC Metric Four Bolt Square Cast Iron Housing Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 50mm Shaft - Closed Version - Allow 2-3 Days

SNR UKF211HCC Metric Four Bolt Square Cast Iron Housing Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 50mm Shaft - Closed Version - Allow 2-3 Days
$103.66 ex VAT
$103.66 ex VAT
Sale Sold out

In stock

Price Break
3+ $69.44
4+ $65.54
9+ $64.76
19+ $63.98
49+ $63.20
99+ $62.42
499+ $58.51
999+ $57.73
1999+ $56.95
2999+ $56.17
4999+ $54.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UKF
Bolt Hole Centres:
130mm
Technical

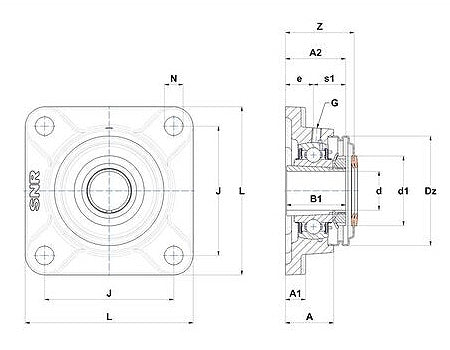

--- Dimensions
Shaft diameter d 50mm
A 43mm
A1 18mm
A2 54mm
B 33mm
B1 59mm
d1 75mm
e 25mm
J 130mm
L 162mm
N 19mm
Dz 110mm
Z 62.8mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2311
Mass 3.494 kg
