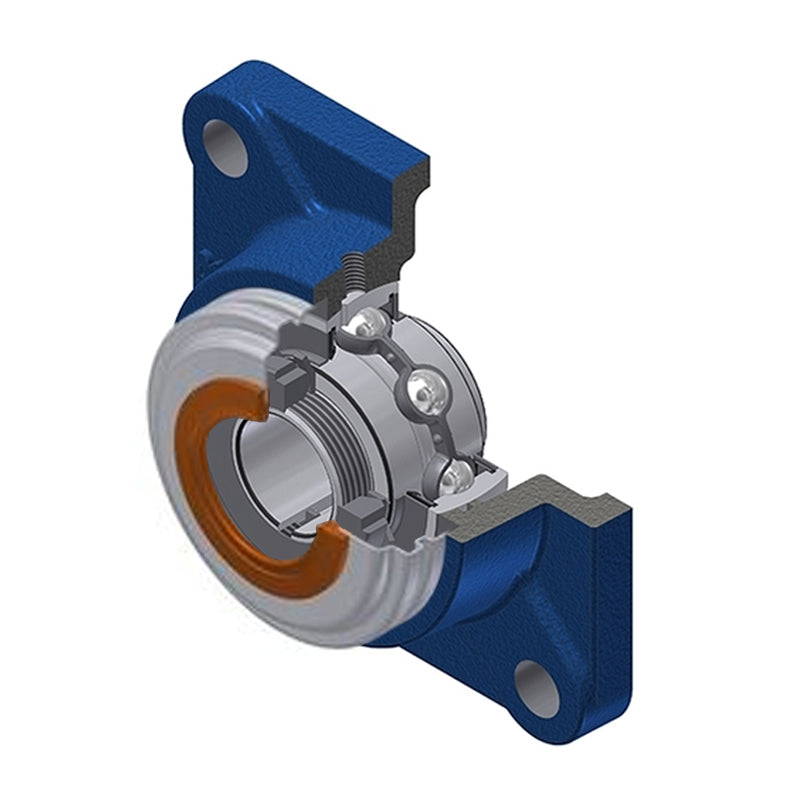

• SNR UKF213HCO Metric Four Bolt Square Cast Iron Housing Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 60mm Shaft - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UKF213HCO-SNR

SNR UKF213HCO Metric Four Bolt Square Cast Iron Housing Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 60mm Shaft - Open Version - Allow 2-3 Days

SNR UKF213HCO Metric Four Bolt Square Cast Iron Housing Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 60mm Shaft - Open Version - Allow 2-3 Days
$155.83 ex VAT
$155.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $104.38
4+ $98.51
9+ $97.34
19+ $96.17
49+ $95.00
99+ $93.82
499+ $87.96
999+ $86.79
1999+ $85.61
2999+ $84.44
4999+ $82.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UKF
Bolt Hole Centres:
149mm
Technical
--- Dimensions
Shaft diameter d 60mm
A 50mm
A1 22mm
A2 62mm
B 36mm
B1 65mm
d1 85mm
e 30mm
J 149mm
L 187mm
N 19mm
Dz 132mm
Z 74.3mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2313
Mass 5.614 kg
