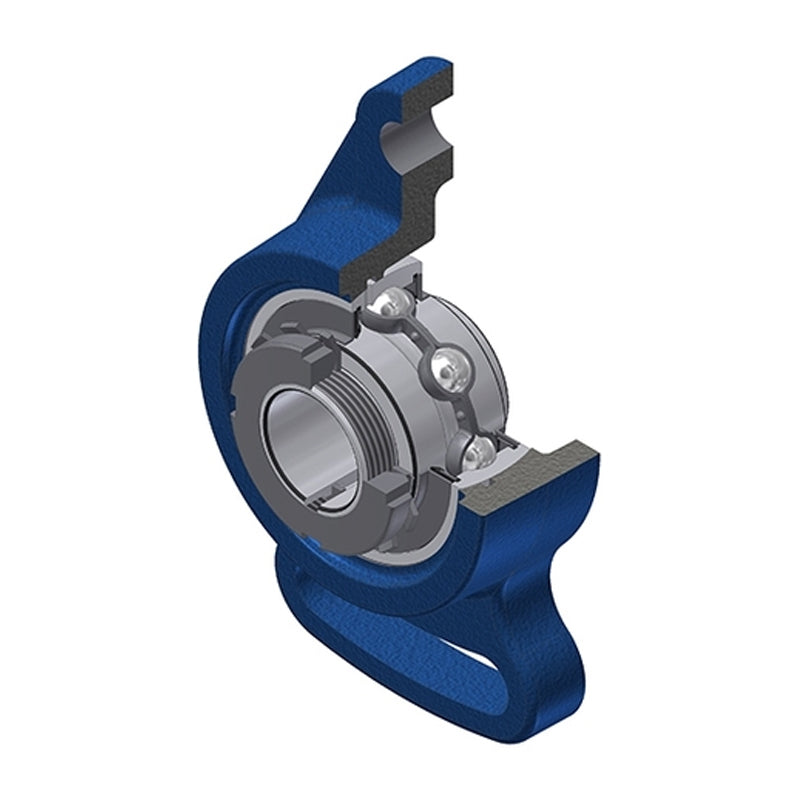

SNR UKFA205H Metric Cast Iron Adjustable Flange Housing Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
SNR UKFA205H Metric Cast Iron Adjustable Flange Housing Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
Regular price
$47.10
ex VAT
Regular price
Sale price
$47.10
ex VAT
In stock
Price Break
3+
$35.09
4+
$33.67
9+
$32.96
19+
$31.90
49+
$31.19
99+
$29.42
499+
$24.81
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UKFA
- Bolt Hole Centres:
- 98mm
Technical
Technical

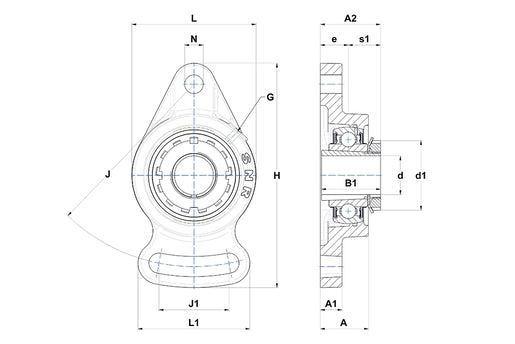

| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 27mm |
| A1 | 14mm |
| A2 | 34.5mm |
| B | 21mm |
| B1 | 35mm |
| d1 | 38mm |
| e | 16mm |
| H | 125mm |
| J | 98mm |
| J1 | 51mm |
| L | 68mm |
| L1 | 65mm |
| N | 12mm |
| s1 | 18.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2305 |
| Mass | 0.64 kg |
