SKU: UKFA207HCO-SNR

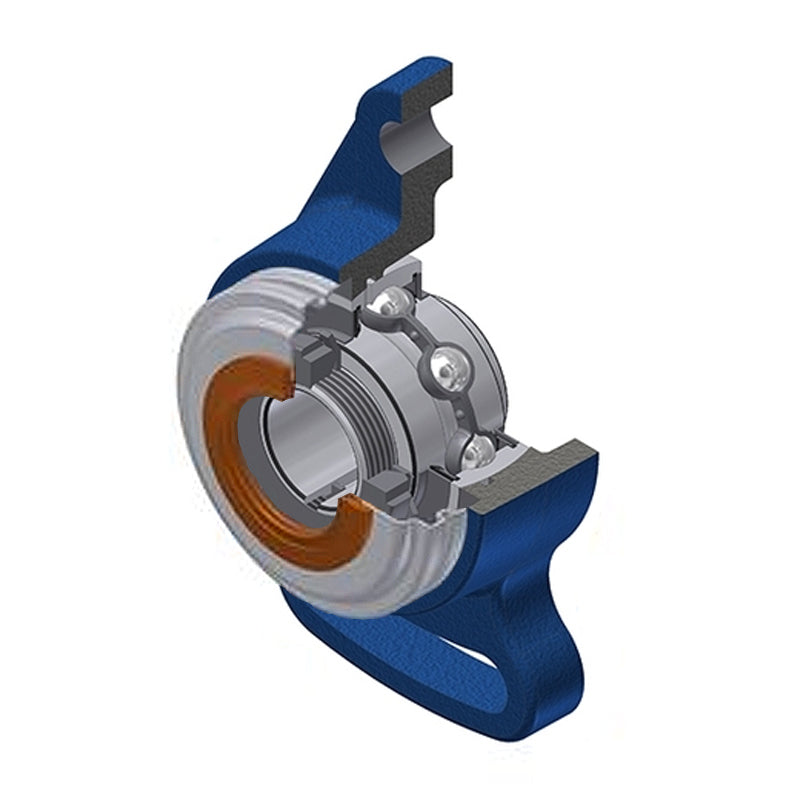

SNR UKFA207HCO Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
SNR UKFA207HCO Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
Regular price
$88.33
ex VAT
Regular price
Sale price
$88.33
ex VAT
In stock
Price Break
3+
$65.81
4+
$63.15
9+
$61.82
19+
$59.82
49+
$58.49
99+
$55.17
499+
$46.53
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKFA
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 34mm |
| A1 | 16mm |
| A2 | 41.5mm |
| B | 27mm |
| B1 | 43mm |
| d1 | 52mm |
| e | 19mm |
| H | 161mm |
| J | 130mm |
| J1 | 66mm |
| L | 90mm |
| L1 | 82mm |
| N | 15mm |
| Dz | 80mm |
| Z | 48.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2307 |
| Mass | 1.398 kg |
