SKU: UKFA209HN-SNR

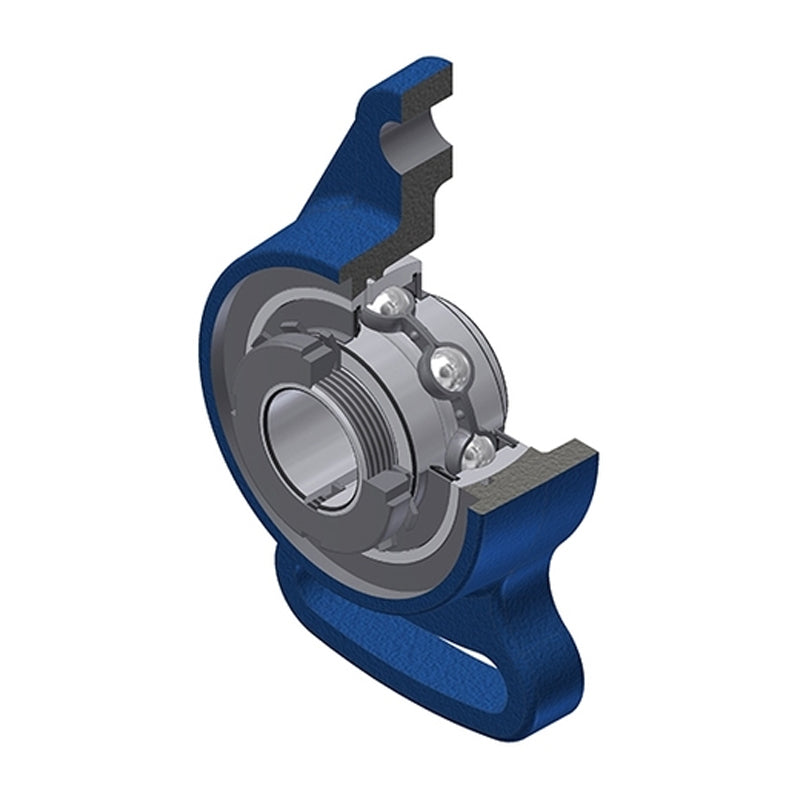

SNR UKFA209HN Metric Cast Iron Adjustable Flange Housing Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
SNR UKFA209HN Metric Cast Iron Adjustable Flange Housing Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
Regular price
$103.02
ex VAT
Regular price
Sale price
$103.02
ex VAT
In stock
Price Break
3+
$76.74
4+
$73.64
9+
$72.09
19+
$69.77
49+
$68.22
99+
$64.34
499+
$54.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKFA
- Bolt Hole Centres:
- 148mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 38mm |
| A1 | 18mm |
| A2 | 48mm |
| B | 30mm |
| B1 | 50mm |
| d1 | 65mm |
| e | 22mm |
| H | 181mm |
| J | 148mm |
| J1 | 72mm |
| L | 108mm |
| L1 | 90mm |
| N | 15mm |
| s1 | 26mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2309 |
| Mass | 2 kg |
