SKU: UKFA211HCO-SNR

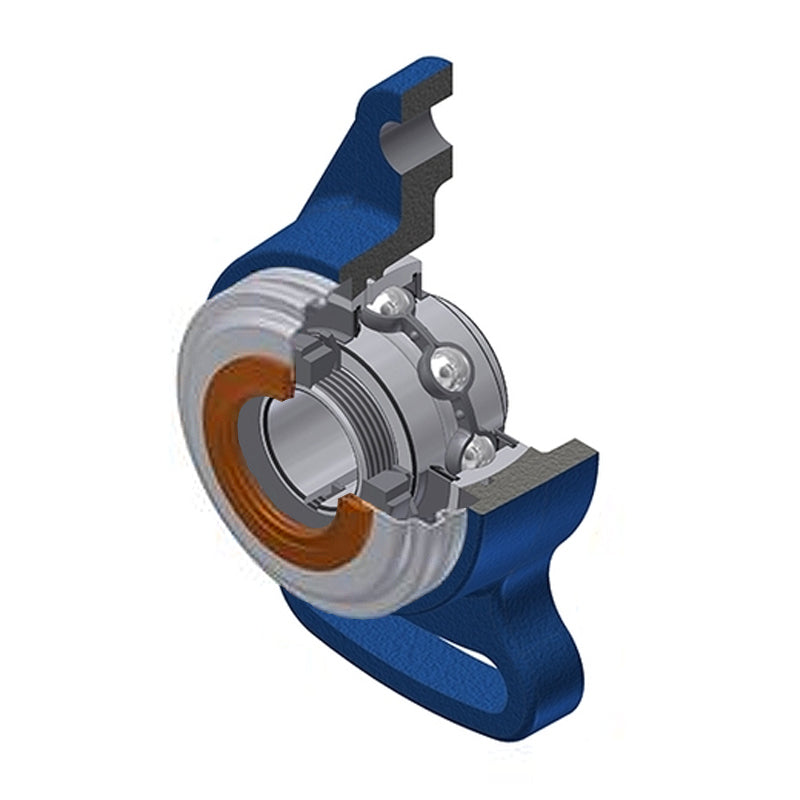

SNR UKFA211HCO Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
SNR UKFA211HCO Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price
$147.22
ex VAT
Regular price
Sale price
$147.22
ex VAT
In stock
Price Break
3+
$109.67
4+
$105.24
9+
$103.03
19+
$99.70
49+
$97.49
99+
$91.95
499+
$77.55
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKFA
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 43mm |
| A1 | 20mm |
| A2 | 54mm |
| B | 33mm |
| B1 | 59mm |
| d1 | 75mm |
| e | 25mm |
| H | 219mm |
| J | 184mm |
| J1 | 86mm |
| L | 130mm |
| L1 | 104mm |
| N | 16mm |
| Dz | 110mm |
| Z | 64.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2311 |
| Mass | 3.334 kg |
