SKU: UKFE208HN-SNR

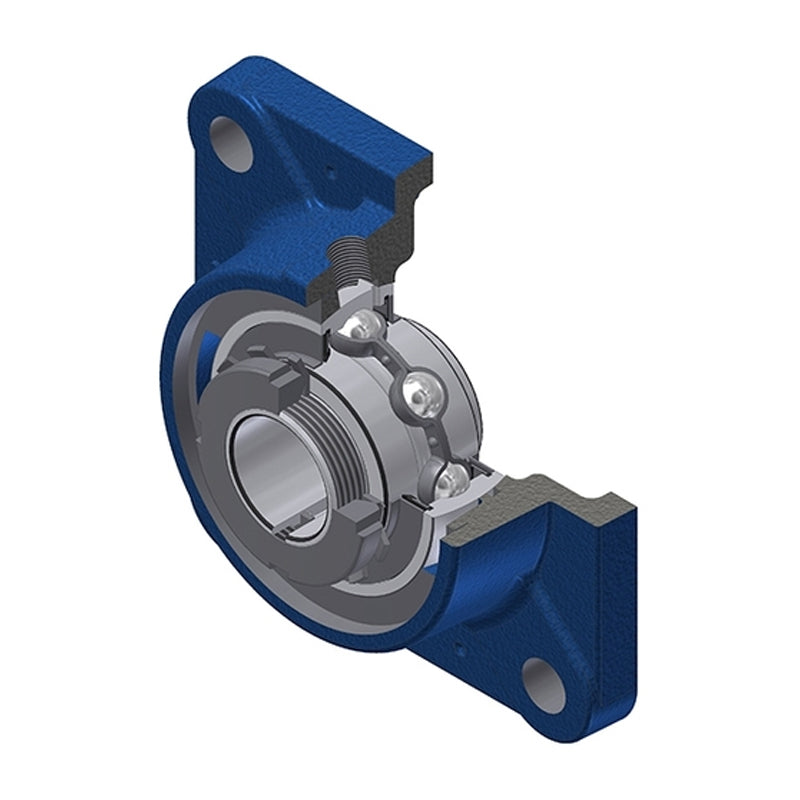

SNR UKFE208HN Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
SNR UKFE208HN Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
Regular price
$88.36
ex VAT
Regular price
Sale price
$88.36
ex VAT
In stock
Price Break
3+
$65.83
4+
$63.17
9+
$61.84
19+
$59.84
49+
$58.51
99+
$55.19
499+
$46.54
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UKFE
- Bolt Hole Centres:
- 101.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 39.5mm |
| A1 | 13mm |
| A2 | 48.5mm |
| B | 29mm |
| B1 | 46mm |
| d1 | 58mm |
| e | 24mm |
| J | 101.5mm |
| L | 130mm |
| N | 14mm |
| s1 | 24.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2308 |
| Mass | 2.1 kg |
